When refractory elements crack or system components fail prematurely, operators often blame poor material quality. This assumption proves dangerously incorrect. Industry data reveals a much more controllable reality behind these breakdowns. Equipment failure usually stems from inadequate daily cleaning routines. Neglecting routine maintenance accelerates thermal fatigue. It also drives irreversible corundum growth along the chamber walls.
You cannot treat equipment care as an optional housekeeping chore without risking your entire capital expenditure. Adopting a strict "pay-me-now or pay-me-later" operational strategy remains the only way to prevent catastrophic downtime. Consistent maintenance ensures uncompromised brazing quality across all production shifts.
In this comprehensive guide, we explore how engineered structural maintenance protocols safeguard your daily operations. You will learn how to enforce strict operating parameters to prevent material degradation. We also outline how to evaluate vendors strategically for maintainability. These actionable insights will significantly extend the operational life of your equipment.
Key Takeaways
Consistent, engineered maintenance protocols can extend continuous furnace lifespans by 20% to 30% while reducing energy consumption.
Understanding chemical degradation mechanisms—such as flux residue accumulation and corundum expansion—is essential for preventative care.
Strict Integrity Operating Windows (IOWs), including heating/cooling rate limits (≤2°C/min), are mandatory to prevent thermal fatigue.
When evaluating new equipment, structural maintainability is a primary decision factor alongside thermal performance.
The Financial and Operational ROI of Rigorous Maintenance
Maintenance execution connects directly to your facility's bottom line. A pristine, well-maintained continuous brazing furnace heats up rapidly. It retains stable temperatures much more efficiently than a neglected unit. This optimal thermal retention slashes daily fuel costs significantly. It also minimizes your manufacturing plant's overall carbon footprint. By reducing energy waste, you align heavy industrial processes with modern sustainability targets. Well-sealed doors and intact insulation prevent valuable heat from escaping into the factory floor.
Industry data highlights the undeniable value of routine care. Timely crack repair and consistent thermal management yield a 20% to 30% increase in total equipment lifespan. You extract maximum value from your initial capital investment by keeping the core structure sound. A common mistake involves delaying minor repairs until the annual scheduled shutdown. Minor issues compound rapidly. Small refractory cracks expand deep into the insulation layers. This breach allows immense heat to reach the external steel shell, causing severe structural warping and localized hot spots.
Ignoring these minor defects leads directly to catastrophic structural failures. High-volume production environments cannot afford sudden line stoppages. Unplanned downtime costs thousands of dollars per hour in lost throughput and scrapped materials. A rigorous maintenance schedule acts as an industrial insurance policy. It guarantees continuous output, predictable brazing quality, and a highly stable operational budget. You must shift your mindset from reactive firefighting to proactive equipment preservation.
Root Causes of Furnace Degradation: Mechanisms and Risks
Understanding exactly how brazing equipment degrades helps operators prevent irreversible damage. Molten aluminum aggressively reacts when exposed to ambient oxygen. This chemical reaction generates tough oxide layers known as dross. If you leave dross uncleaned, it crystallizes into highly destructive corundum. Corundum expands relentlessly as it grows along the internal surfaces. This physical expansion exerts massive pressure. It crushes structural steel, warps automated doors, and shatters internal refractory linings from the inside out.
Thermal fatigue acts as another invisible enemy. Rapid temperature shifts force uneven components to expand and contract asynchronously. Thick side frames heat up slower than thin sealing plates. This uneven physical stress creates deep thermal fatigue cracks across vital welded joints. You must reject outdated "leak-before-failure" assumptions entirely. Modern engineering proves sudden catastrophic ruptures occur without warning when thermal gradients exceed safe material limits.
Controlled Atmosphere Brazing (CAB) introduces unique chemical hazards. Potassium fluoroaluminate flux residues accumulate rapidly inside the heating chamber. These sticky deposits coat heating elements and block crucial nitrogen distribution lines. Blocked lines ruin the protective inert atmosphere necessary for clean joints. This obstruction allows oxygen to enter the muffle, which immediately ruins brazed joint integrity and turns parts black.
Operators face a challenging cleaning paradox here. You must remove these harsh deposits daily to protect the muffle. However, aggressive physical scraping permanently damages sensitive refractories. Using heavy steel crowbars chips away the protective castable lining alongside the dross. To resolve this paradox, we strongly advocate for high-frequency, low-impact daily skimming routines. Removing soft oxides today prevents the need for destructive chiseling tomorrow. Proper maintenance balances cleanliness with material preservation.
Critical Subsystem Maintenance for Continuous Brazing Furnaces
Protecting your equipment requires a systematic approach to each interconnected subsystem. You cannot focus solely on the heating chamber while ignoring vital mechanical components or sensor networks.
Thermal and Refractory Zones
You must monitor four primary high-wear areas constantly to prevent sudden refractory failure. Pay close attention to the active metal-to-slag interface line where oxidation peaks. Inspect junction points between walls and floors for separating seams. Check the door jambs and surrounding structural frames daily. Finally, examine the charge wells since they experience the most extreme thermal shocks during loading.
Enforce strict Integrity Operating Windows (IOWs) to prevent refractory shock. Keep steady-state temperature differences under 50°C across heating zones. Limit heating and cooling ramp rates strictly to 2°C per minute. Never exceed a maximum shift of 60°C per hour. Violating these rules fractures the internal brickwork almost immediately.
Mechanical and Conveyor Systems
Your mesh belt conveyor systems demand strict dry-cleaning protocols. Always use specialized wire brushes or dry compressed air. Never introduce water or liquid solvents into the brazing chamber. Moisture creates massive porosity defects in finished joints and contaminates the vacuum or nitrogen environment. You must apply specific high-temperature lubricants to all moving parts. Lubricate rollers and bearings meticulously to minimize friction inside continuous loop systems. Neglecting lubrication stretches the mesh belt, damages the drive links, and causes severe drive motor overloads.
Atmosphere and Control Systems
Aluminum brazing requires a remarkably narrow optimal operating window between 580°C and 620°C. Sensor accuracy remains strictly non-negotiable for producing flawless joints. Regularly calibrate your thermocouples and PID controllers to prevent under-heating or localized melting. You should frequently inspect safety interlocks and flame sensors to maintain safe combustion. Clean water cooling system filters diligently. Hard water scaling restricts flow, causing expensive cooling jackets to overheat, warp, and eventually rupture.
Operational Parameter
Safety Limit
Primary Risk if Exceeded
Steady-State Temp Variance
< 50°C
Internal component warping and uneven brazing
Heating/Cooling Ramp Rate
≤ 2°C / min
Severe refractory thermal shock and spalling
Max Hourly Temp Shift
60°C / hour
Asynchronous thermal fatigue across welds
Optimal Brazing Window
580°C – 620°C
Incomplete joint filling or total part melting
Establishing a Condition-Based & Time-Bound Schedule
Effective maintenance relies on strict execution schedules rather than mere guesswork. You must implement daily, weekly, and quarterly routines to catch defects before they escalate.
Daily Routines for Visual and Baseline Checks
Operators must complete these baseline tasks every single shift to ensure operational safety:
Record baseline parameters including chamber temperature, gas pressure, and conveyor speed. Tracking these variables reveals slow, hidden degradation over time.
Perform light physical removal of surface oxides and dross. Use properly angled rakes to stop heavy corundum buildup before it solidifies against the walls.
Examine finished parts for any abnormal discoloration. Discolored output serves as your primary visual indicator of atmosphere contamination or sudden vacuum leaks.
Weekly and Monthly Deep Cleaning Routines
Dedicate maintenance hours every week for deeper system preservation and debris removal:
Inspect all internal heating elements for early warning signs of oxidation, blistering, or sagging.
Scrape hardened bottom sludge deposits from the furnace floor carefully using non-destructive tools.
Clean your combustion air filters to maintain maximum burner fuel efficiency and stable flame geometry.
Flush and clear nitrogen distribution lines to eliminate stubborn flux residue blockages.
Quarterly and Annual Predictive Diagnostics
Move from preventative to predictive maintenance during longer scheduled plant shutdowns:
Deploy online Thermal Imaging (FLIR) cameras to map internal heat signatures. This detects hazardous refractory thinning while operations continue safely.
Utilize Phased Array Ultrasonic Testing (PAUT) during planned shutdowns. This advanced technique inspects critical header welds for microscopic fatigue flaws much better than standard visual checks.
Conduct comprehensive software and firmware updates on all PLC control systems to ensure logic accuracy and sensor communication.
Maintainability as a Core Evaluation Criterion in Procurement
Procuring a new system requires looking far beyond the initial purchase price. A seemingly attractive upfront cost means absolutely nothing if routine cleaning demands excessive, agonizing downtime. Buyers must aggressively evaluate physical access to the internal muffle. Check how easily your technicians can reach heating elements and mesh belt routing pathways. Poorly designed equipment turns a 30-minute skimming routine into a six-hour teardown process. Equipment must feature removable side panels and easily extractable hearth components.

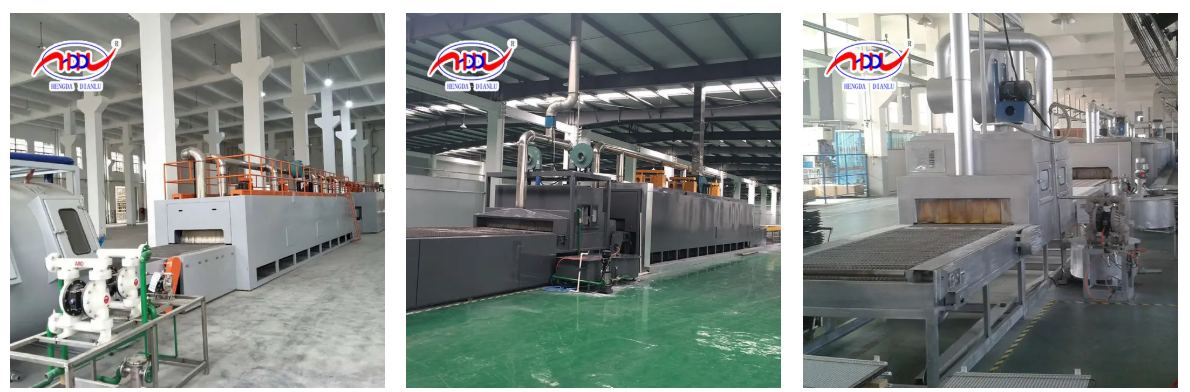

You must evaluate vendor engineering thoroughly. Prioritize manufacturers who design specifically for thermal gradient mitigation. For instance, advanced systems like the NB Continuous Gas Brazing Furnace incorporate superior heat distribution technologies. They feature highly accessible maintenance points and modular refractory designs. These targeted engineering upgrades lower operational headaches and dramatically extend the structural longevity of the unit.
When requesting vendor proposals, enforce strict shortlisting logic. Mandate comprehensive Integrity Operating Window (IOW) documentation before signing any contracts. Require detailed preventative maintenance schedules upfront to assess future labor burdens. Most importantly, demand engineering proof showing structural resistance against corundum expansion and thermal fatigue. Vendors should readily explain how their design prevents flux residue accumulation. By demanding structural maintainability early, you guarantee decades of reliable production.
Conclusion
Maintaining your continuous brazing equipment demands much more than basic housekeeping. It stands as a highly engineered operational necessity. Long-term success requires strict adherence to narrow thermal limits. You need a solid chemical understanding of flux residues and dross formation. Most importantly, you need disciplined daily execution across all maintenance tiers. Overlooking these essential steps invites sudden failure and costly downtime.
We advise plant managers to take these immediate action steps:
Audit your current cleaning schedules immediately against official OEM Integrity Operating Windows.
Upgrade your diagnostic toolset to include predictive monitoring techniques like FLIR thermal imaging.
Prioritize ease of maintenance and component accessibility when specifying your next equipment purchase.
This proactive approach ensures consistent brazing quality and protects your facility from catastrophic operational breakdowns.
FAQ
Q: What is the safe idling temperature for an aluminum continuous brazing furnace?
A: The ideal safe idling temperature typically hovers around 677°C (1250°F). Idling at this stable temperature conserves vital energy during production downtime. It also effectively prevents internal metal oxidation and eliminates the risk of severe thermal shock upon restarting operations.
Q: Why are brazed parts coming out discolored?
A: Part discoloration stands as the primary symptom of severe atmosphere contamination. It usually indicates oxygen leaks within the chamber or completely blocked nitrogen distribution lines. You must halt operations immediately and conduct thorough visual and sensor inspections.
Q: Can water or oil-based cleaners be used inside the brazing chamber?
A: Strictly no. Introducing moisture or hydrocarbons causes catastrophic atmosphere contamination and widespread joint porosity. You must rely exclusively on dry cleaning methods. Operators should only use specialized wire brushing, dry compressed air, or approved vacuum-grade materials.
