Continuous brazing demands incredibly strict atmospheric control. You must prevent oxidation, ensure fluid filler metal flow, and preserve the physical integrity of your base metals. On an industrial scale, atmospheric consistency is not optional. Minor fluctuations directly drive up defect rates and complicate your production cycle. You need a reliable baseline gas to maintain stability. Nitrogen acts as this crucial industrial standard for controlled environments. It functions beautifully as an economical inert shield while serving as an absolutely critical safety purge.
This guide gives engineers and procurement managers an evidence-based framework for evaluating nitrogen. You will learn its precise role in the process. We will identify its high-temperature limitations around specific reactive metals. Furthermore, you will discover the exact hardware configurations required to specify a high-performance continuous brazing furnace. By understanding these dynamics, you can optimize your operation for both safety and superior metallurgical results.
Key Takeaways
Nitrogen serves a dual purpose: a cost-effective, inert shield against oxidation and a required safety purge (compliant with NFPA 86 standards).
Transitioning from dissociated ammonia to Nitrogen/Hydrogen (N2/H2) blends lowers volatility while maintaining optimal reduction for high-quality brazes.
Nitrogen is not universally inert at high temperatures; specialized materials (e.g., Titanium, Zirconium) require Argon or vacuum alternatives to prevent unwanted nitride formation.
Maximizing ROI requires pairing the gas supply with continuous dew point monitoring (<-40°F) and oxygen tracking (<15 ppm) in the cooling zone.
The Dual Function of Nitrogen in a Continuous Brazing Furnace
Nitrogen plays two distinct but equally important roles in thermal processing. It protects the physical product while securing the facility itself. Understanding this duality helps operators leverage the gas more effectively during complex brazing cycles.
The Inert Protective Shield
Nitrogen excels as a basic protective atmosphere. It actively displaces oxygen inside the heating chamber. This displacement prevents destructive oxidation on the metal surface. When you heat carbon steel in the presence of oxygen, scaling occurs. Scaling creates iron oxide layers. These layers ruin the surface finish and prevent filler metals from bonding. Nitrogen entirely neutralizes this risk.
Furthermore, nitrogen protects against surface decarburization. Carbon steels can lose vital carbon atoms at high temperatures. This loss softens the outer layer of the metal. By maintaining a highly pure nitrogen atmosphere, you preserve the mechanical strength of the parts.
Safety and Purging Baseline
Beyond metallurgy, nitrogen serves as the ultimate safety net. The National Fire Protection Association (NFPA) explicitly outlines furnace safety in the NFPA 86 standard. This standard mandates a reliable purging gas. Nitrogen perfectly fits this requirement.
Its density sits very close to normal atmospheric air. This physical property allows it to efficiently sweep explosive or toxic gases from the furnace chamber. Operators must run this purge before the active heating cycle begins. They must also use it after the cycle concludes. Failing to perform a proper nitrogen purge creates immense explosion risks, especially when handling highly combustible reducing gases.
The Diluent Advantage
Pure active reducing agents, like hydrogen, are expensive and highly volatile. Using pure hydrogen often creates atmospheric inconsistencies. Hydrogen is an incredibly light gas. If left alone, pure hydrogen floats and pools at the roof of the furnace chamber. This pooling leaves the actual workload completely unprotected.
Nitrogen solves this density problem. It acts as a heavy carrier gas. When you blend nitrogen with hydrogen, you increase the overall density of the mixture. The nitrogen effectively pushes the active hydrogen down toward the conveyor belt. This action ensures uniform atmosphere distribution across your entire workload.
Best Practices: Always calculate the required purge volume based on your furnace's internal dimensions. NFPA 86 typically recommends sweeping the chamber with at least five complete volume changes of pure nitrogen before introducing any combustible gas.
Nitrogen/Hydrogen Blends: The Modern Alternative to Dissociated Ammonia
Industrial brazing is undergoing a significant transition. Facilities are actively moving away from traditional anhydrous ammonia atmospheres. They are replacing them with precisely mixed nitrogen and hydrogen blends. This shift dramatically improves operational safety.
The Industry Shift
For decades, dissociated ammonia served as the standard brazing atmosphere. It provided a fixed ratio of 75% hydrogen to 25% nitrogen. However, anhydrous ammonia poses severe environmental and health hazards. Storing liquid ammonia requires expensive compliance measures. A single leak can force a total facility evacuation.
Cost and safety concerns naturally drive facilities toward safer alternatives. Synthetic N2/H2 blends eliminate the toxic storage risks completely. You simply mix bulk nitrogen with controlled hydrogen sources. This modern approach satisfies strict environmental regulations while maintaining peak production speeds.
Process Customization
Dissociated ammonia locks you into a rigid 75/25 gas ratio. Synthetic nitrogen blends offer complete process customization. Operators can adjust hydrogen ratios precisely based on the specific alloy. You can dial the hydrogen concentration anywhere from 5% up to 80%.
Consider standard bright stainless steel brazing. This application typically requires at least 25% hydrogen to effectively clean chromium oxides. However, advanced aerospace applications demand high hermeticity. They require extreme corrosion resistance. For these specialized runs, operators can easily bump the hydrogen ratio higher. This flexibility prevents you from wasting expensive hydrogen on basic carbon steel runs.
Cost-to-Performance Ratio
Diluting hydrogen with nitrogen significantly lowers your consumable expenses. Hydrogen costs substantially more than nitrogen. By finding the exact minimum hydrogen percentage required for your alloy, you maximize efficiency.
Even heavily diluted, the mixture retains powerful reducing capabilities. The hydrogen actively breaks down stubborn surface oxides. This chemical reduction promotes aggressive capillary action. The molten brazing alloy flows smoothly into tight joint clearances. You achieve premium joint strength without paying for unnecessary active gas volumes.
Atmosphere Type
Typical Composition
Primary Application
Safety Risk Level
Dissociated Ammonia
75% H2 / 25% N2
Traditional stainless brazing
High (Toxic storage)
Synthetic N2/H2 Blend (Lean)
5-10% H2 / Balance N2
Carbon steels, copper alloys
Low
Synthetic N2/H2 Blend (Rich)
25-50% H2 / Balance N2
Bright stainless steel
Moderate
Material Compatibility Risks: When to Avoid Nitrogen
Nitrogen performs flawlessly for carbon steels, standard stainless alloys, and copper. However, it is not universally inert. At extreme temperatures, nitrogen behaves aggressively toward certain materials. Engineers must recognize these limitations before committing to a gas strategy.
Reactive Metal Limitations
At typical brazing temperatures, nitrogen actually ceases to be inert around highly reactive metals. Titanium, Zirconium, and Molybdenum fall into this vulnerable category. When exposed to hot nitrogen, these metals absorb the gas rapidly.
This absorption triggers a chemical reaction. The metals form brittle nitrides on their surfaces. Nitride formation completely compromises component strength. The metal loses its ductility. It becomes prone to sudden, catastrophic cracking under load. You cannot use nitrogen when processing these specific high-reactivity elements.
The Argon / Vacuum Alternative
Aerospace and medical components frequently utilize these advanced metals. For these components, engineers must specify entirely different atmospheres. You must pivot to Argon-based atmospheres (AWS-9) or utilize vacuum furnaces (AWS-10).
Argon is a noble gas. It remains absolutely inert regardless of the temperature. It will never react with Titanium or Zirconium. Vacuum environments eliminate gases entirely. Both alternatives carry higher operational costs. However, they remain absolutely necessary to prevent nitride embrittlement in mission-critical parts.
Impact on Furnace Hardware
High-temperature gases interact aggressively with furnace components over time. When specifying a furnace, you must acknowledge these interactions. High hydrogen-to-nitrogen ratios can degrade specific internal hardware.
Certain heating elements, like Silicon Carbide (SiC) or Molybdenum Disilicide (MoSi2), suffer chemical degradation in rich reducing atmospheres. To combat this, engineers often require specific retort designs. A retort, or muffle, acts as a physical barrier. It physically isolates the protective atmosphere from the heating elements. This isolation protects the elements from chemical attack while maintaining perfect gas purity around your parts.
Common Mistake: Trying to braze titanium alloys in a standard nitrogen atmosphere. Even trace amounts of high-temperature nitrogen will create a brittle alpha-case layer on the titanium, ruining the part permanently. Always default to vacuum or ultra-pure argon.

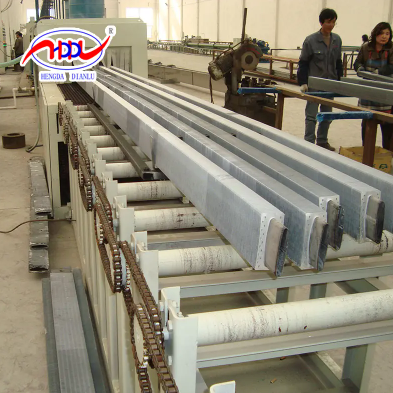

Hardware Configurations for an NB Continuous Gas Brazing Furnace
Choosing the right gas represents only half the battle. Your equipment must manage and contain that gas perfectly. When sourcing an NB Continuous Gas Brazing Furnace, engineers must carefully evaluate several critical hardware systems.
Muffle vs. Non-Muffle Designs
The first major hardware decision involves the muffle. You must evaluate whether your process requires a metallic muffle. A muffle is a high-temperature alloy tube running through the furnace's hot zone. It acts as an inner chamber.
Muffles help maintain incredibly strict atmosphere purity. They prevent outside air from seeping into the process zone. They also make it much easier to control the internal dew point. If you primarily braze high-grade stainless steels, a muffle is almost always mandatory. It guarantees the pristine, oxygen-free environment required for bright finishes. Non-muffle designs work well for simpler carbon steel jobs where slight atmospheric variations are acceptable.
Continuous Monitoring Systems
Modern industrial standards demand rigorous documentation. Compliance frameworks like CQI-9 (for automotive) and NADCAP (for aerospace) leave zero room for guessing. Your furnace must integrate advanced sensor packages.
Manual spot-checking is obsolete. You need digital sensors that continuously sample the furnace atmosphere. These systems automatically log the data. If the atmosphere drifts out of specification, the system triggers immediate alarms. This continuous monitoring protects your entire production run from invisible atmospheric failures.
Critical Thresholds
You must measure two distinct metrics: moisture and oxygen. Precision gas mixing panels handle the incoming supply, but monitors verify the actual internal conditions.
First, consider the dew point monitor. The dew point measures moisture inside the hot zone. For high-quality brazing, your target must sit below -40°F. Any moisture above this threshold will oxidize chromium in stainless steel, preventing filler metal flow. Second, you must install oxygen sensors in the cooling zone. As parts exit the heat, they remain vulnerable to oxidation. You must target an oxygen level below 15 ppm. Exceeding this limit results in severe heat tinting and discoloration on your finished parts.
Atmosphere Humidification
Usually, operators fight to keep moisture out of the furnace. However, certain specialized processes require the exact opposite. We briefly touch upon atmosphere humidification here.
Some specific copper brazing applications actually benefit from controlled water vapor. Introducing slight moisture raises the dew point intentionally. This controlled humidity provides a slight oxidation effect that paradoxically improves the wetting action of certain filler metals. Specialized hardware, like automated humidification bubblers, allows operators to introduce this moisture safely and precisely when needed.
Sourcing Nitrogen: Purity Requirements and Production Methods
The operational effectiveness of your continuous brazing furnace is strictly bottlenecked by the purity of the gas supply. You cannot out-engineer bad gas.
Why Source Matters
Low-quality nitrogen introduces residual oxygen and moisture directly into your process zone. Some operators attempt to fix this by pumping in extra hydrogen. They try to use reactive gases to "clean up" the bad nitrogen. This strategy fails. It proves economically inefficient and highly unstable. You must start with the correct baseline purity.
Nitrogen Production Methods
Facilities typically source nitrogen through three distinct methods. Each method yields radically different purity levels.
Membrane Separation: This method pushes compressed air through polymer membranes. It separates nitrogen from oxygen. However, it often produces nitrogen with too high an oxygen residue. Membrane nitrogen usually maxes out around 99% purity. This level works for basic chemical blanketing or safety purging. It remains totally unsuitable for high-finish brazing.
Pressure Swing Adsorption (PSA): PSA systems use carbon molecular sieves to trap oxygen under pressure. This method offers the reliable baseline purity required for standard heat treatment. A well-maintained PSA generator can achieve 99.99% purity. This fits perfectly for brazing carbon steels and basic copper components.
Cryogenic (Liquid) Supply: Cryogenic distillation separates air by freezing it. This method delivers ultimate precision. It provides 99.999% purity. If you are bright-brazing medical-grade stainless steel or complex automotive components, cryogenic nitrogen acts as the absolute standard. It completely eliminates moisture and oxygen variables from your process.
Production Method
Max Typical Purity
Best Suited For
Membrane Separation
~99.0%
Safety purging, simple blanketing
PSA Generation
~99.99%
Standard carbon steel brazing
Cryogenic (Liquid)
99.999%
Bright stainless, aerospace alloys
Conclusion
Nitrogen provides a highly effective balance of safety, operational efficiency, and process control in continuous brazing environments. However, its success is not automatic. You must match the gas correctly with your specific base materials and pair it with strict gas delivery hardware.
When specified correctly, a nitrogen-based atmosphere prevents crippling oxidation while neutralizing combustion risks. To capitalize on these benefits, buyers must take a systematic approach before finalizing any equipment purchases.
Conduct a comprehensive material audit to identify any highly reactive metals (like Titanium) that might require argon instead of nitrogen.
Evaluate your required hydrogen ratios and determine if a metallic muffle is necessary to protect your heating elements.
Evaluate long-term gas consumption volumes to decide between a PSA generation system or a bulk cryogenic supply.
Specify digital dew point and oxygen sensors to guarantee compliance with modern automotive and aerospace standards.
FAQ
Q: Why is nitrogen required for HVAC copper pipe brazing?
A: When HVAC technicians braze copper, they must purge the internal pipes with nitrogen. Without this internal purging, high heat causes severe oxidation inside the copper line. This oxidation turns into a flaky black scale. While it won't cause immediate failure, this scale eventually breaks loose, traveling through the refrigerant lines and causing non-immediate, long-term compressor damage.
Q: Can a continuous brazing furnace run on 100% nitrogen?
A: Yes, but only for specific applications. While 100% nitrogen perfectly prevents new oxidation, it lacks the chemical reducing power of hydrogen. It cannot actively clean existing oxides off the metal surface. Ideal filler metal wetting usually requires at least a small percentage of hydrogen to actively reduce those stubborn surface oxides.
Q: What is the maximum allowable oxygen level in the cooling zone?
A: You must maintain the oxygen level strictly below 15 ppm in the cooling zone. Metals remain highly susceptible to oxidation until they cool completely. If oxygen exceeds this 15 ppm threshold, the parts will undergo heat tinting, emerging with unacceptable surface discoloration and compromised aesthetic quality.
