Choosing The Right Continuous Brazing Furnace For Small, Medium, And Large Production

Procuring industrial brazing equipment demands significant capital expenditure. It fundamentally alters your long-term operational capabilities. Selecting the right equipment requires moving beyond theoretical capacity limits. You must match thermal profiles, atmosphere controls, and belt dimensions with actual floor realities. We frequently see manufacturers struggle here. They purchase equipment based on maximum output numbers. Then they face bottlenecks when changing product lines. They experience wasted energy during low-volume shifts. This mismatch causes severe production issues.

Our objective is to provide a vendor-agnostic, evidence-based framework. We want to help you evaluate furnace specifications against specific production volumes. You will learn how to assess atmosphere management rigorously. We will guide you through thermal profiling requirements. You will also understand critical facility implementation constraints. By the end, you will know exactly how to build a robust specification sheet. This ensures you buy a system tailored to your true production needs.

Key Takeaways

• Volume dictates architecture: Belt width and heating/cooling zone lengths must align with exact lbs/hour throughput goals to avoid energy waste.

• Atmosphere control is non-negotiable: Precise management of reducing or inert gases is the primary driver of joint integrity and flux-free processing.

• TCO exceeds initial CapEx: Implementation realities—such as belt degradation, muffle replacements, and utility consumption—heavily influence long-term ROI.

• Validation is mandatory: Evaluating vendors requires physical sample runs matching your specific base metals and braze alloys.

Aligning Furnace Specifications with Production Scale

Small-Batch & Prototyping Run Considerations

Operating massive production lines for intermittent runs wastes tremendous energy. It creates frustrating process bottlenecks. Small batches do not require massive throughput capabilities. When you run a large system for small prototype batches, you heat empty space. This drains utility resources rapidly. For prototyping, you must focus on narrower mesh belts. Systems utilizing 4-inch to 6-inch belts work exceptionally well. They require less power to reach brazing temperatures. You need rapid heat-up and cool-down capabilities. This agility lets your engineering team test multiple iterations daily. Look closely at minimal idle-state gas consumption. Smaller footprints allow agile changeovers between distinct product families. They keep utility waste low during production downtime. You preserve resources while maintaining high testing flexibility.

Medium-Scale Production Needs

Medium operations face entirely different operational challenges. You must balance consistent daily throughput carefully. Yet, you still need flexibility. You might handle minor part geometry changes weekly. You might switch filler alloys occasionally to meet customer demands. To succeed here, prioritize modular heating zones. Programmable logic controllers (PLCs) become vital for medium-scale success. They allow seamless recipe management for different parts. Your operators can switch thermal profiles instantly. Adaptable belt speeds are equally crucial. They accommodate varying thermal masses across different product runs. A heavy steel assembly needs slower belt speeds. A thin copper tube assembly requires faster processing. Your system must handle both efficiently.

Large-Scale / High-Volume Manufacturing

High-volume manufacturing prioritizes maximum equipment uptime above all else. You need reliable 24/7 continuous operation. Strict per-part efficiency drives every engineering decision. In these demanding environments, a robust continuous brazing furnace shines brightest. You must evaluate wide, heavy-duty mesh belts. We recommend looking at 12-inch to 36-inch widths. Some facilities require even wider belts for massive throughput. You need multiple independent temperature control zones. These zones guarantee consistent heat distribution across wide loads. Robust drive mechanisms prevent belt slippage under heavy part weights. Automated loading and unloading integration eliminates manual handling entirely. This keeps labor overhead remarkably low. It also ensures consistent part spacing on the belt.

Core Evaluation Dimensions (Features to Outcomes)

Atmosphere Management & Oxidation Prevention

Atmosphere control strictly dictates final joint quality. You must evaluate the equipment's ability to maintain precise dew points. It needs to control reducing or inert atmospheres perfectly. Common operational gases include Hydrogen, Nitrogen, Dissociated Ammonia, and Exothermic gas. We rely on these gases to protect the heated metals. Purity directly eliminates post-braze cleaning requirements. We call this flux-free processing. It drastically reduces secondary operation delays. A clean atmosphere prevents base metal oxidation completely. It ensures the filler metal flows smoothly into capillary joints. High hydrogen content actively reduces existing surface oxides. Nitrogen acts as an inert sweep gas. You must match the gas generation system to your specific base metals.

Thermal Profiling & Temperature Uniformity

Thermal profiling requires rigorous engineering evaluation. You must assess the pre-heating, brazing, and cooling zones carefully. Strict temperature uniformity prevents thermal shock effectively. It stops base metal distortion entirely. Inconsistent temperatures ruin the capillary action of the filler metal. You need precise thermocouple placement throughout the tunnel. They must monitor the actual part temperature accurately. They cannot just read the ambient air temperature. Good uniformity guarantees repeatable, high-strength joints across every single batch. The pre-heat zone must bring parts up to temperature slowly. The braze zone must hold the exact melting point of the alloy. The cooling zone must solidify the joint before the part exits the protective atmosphere.

Verifying the Technology Route: Continuous vs. Batch Processing

Confirming your structural architecture is an absolute necessity. You must know a continuous approach fits your application perfectly. Do this before committing to any specific brand or model.

Where does continuous processing excel? It dominates in high-volume, standardized part geometries. You get consistent part-to-part quality every single time. You also achieve significantly lower per-part labor handling. Parts flow uninterrupted through the heating zones. You load them at one end and unload them at the other. It streamlines factory floor movement effortlessly.

When should you reconsider? Batch or vacuum furnaces suit highly complex components better. Think of multi-joint aerospace turbine parts. Highly reactive metals like Titanium require ultra-high vacuum environments. Continuous flow becomes technically unfeasible here. These metals oxidize instantly if exposed to trace oxygen. Always verify your base metal compatibility first. Do not force a continuous solution onto a vacuum-required application.

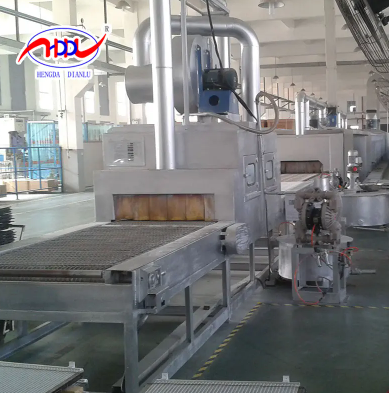

Evaluating the NB Continuous Gas Brazing Furnace for Scaling Operations

Integrating natural gas-fired systems offers a powerful operational alternative. Purely electric-heated continuous furnaces draw massive electrical amperage. They strain facility power grids heavily. An NB Continuous Gas Brazing Furnace utilizes combustible gas directly. This provides distinct operational advantages for heavy manufacturers.

You must analyze the output efficiency carefully. Regions enjoying accessible natural gas infrastructure benefit immensely. Gas systems often reach target temperatures much faster than electric variants. They utilize direct flame impingement on radiant tubes. This transfers heat to the muffle rapidly.

Best-fit scenarios include high-volume automotive parts manufacturing. HVAC components and heavy structural assemblies also match perfectly. These applications require high continuous thermal input. They demand rapid thermal recovery times. When heavy steel parts enter the heating zone, the ambient temperature drops. Gas firing delivers the raw thermal power needed to recover instantly. This keeps line speeds high and production moving seamlessly.

Implementation Realities & Operational Risks

Facility footprint demands strict attention during the planning phase. You must calculate the linear floor space required accurately. Continuous lines stretch far across factory floors. You must include pre-wash staging areas. Post-cooling staging adds even more length to the footprint. Gas storage tanks and ventilation routing consume extra space. You cannot bend a continuous line around a corner easily.

Consumables and maintenance cadence dictate your total uptime. Alloy mesh belts degrade under continuous high-heat stress. They stretch and weaken over time. Heating elements and metallic muffles wear out eventually. You must factor these operational degradation rates into your production planning. Keeping spare belts on hand prevents catastrophic delays.

Downtime carries massive production implications. Assess the difficulty of accessing interior zones for repairs. Halting a continuous line hurts production schedules deeply. The disruption causes worse bottlenecks than staggering batch production. You must plan your preventive maintenance windows rigorously. Schedule muffle inspections during holiday shutdowns. Replace heating elements before they fail completely.

Shortlisting Logic & Building a Vendor RFQ

Building a vendor Request for Quote (RFQ) requires methodical planning. Follow these specific steps to ensure ultimate clarity.

Define Baseline Metrics:
Standardize your requirements upfront. Do this before starting any vendor outreach.

1. Calculate your required lbs/hour throughput strictly based on daily quotas.

2. Identify your absolute peak temperature requirements for your specific alloys.

3. Specify your exact atmosphere gas mixture needs based on material reactivity.

4. Detail the maximum height and width of your largest assembled component.

Require Proof of Concept:
Never buy based on glossy brochures alone. Mandate physical test runs. Use your specific base materials for these tests. Provide your exact brazing alloys and flux if applicable. You must verify vendor claims directly. Check the joint penetration visually. Inspect the cooling aesthetics for any discoloration. Discoloration indicates poor atmosphere control.

Compliance and Safety Standards:
Ensure the equipment meets stringent industrial codes. Industrial safety codes for flammable atmospheres protect your facility and workers. Look for NFPA 86 compliance in North America. Check CE directives for European installations. Always verify local emissions standards regarding exhaust burn-offs. Safety must remain your highest priority when handling explosive gases like Hydrogen.

Conclusion

Selecting the proper equipment shapes your manufacturing future deeply. Match the furnace footprint precisely to your production volume. Do not overbuy capacity you will never use. Prioritize precise atmosphere and thermal control to guarantee consistent joint quality. Calculate your implementation realities based strictly on utility consumption and ongoing maintenance cadences.

Take action today by mapping your exact process requirements. Build a comprehensive material and throughput specification sheet. Detail your alloys, part masses, and hourly production goals. Use this specific sheet to drive objective vendor consultations. A well-prepared buyer always secures the most reliable engineering solutions.

FAQ

Q: What is the standard operational lifespan of a mesh belt in a continuous brazing furnace?

A: Belt lifespan varies heavily based on operating temperature and load weight. Typical lifespans range from six months to two years. High temperatures and heavy parts accelerate wear. Proper belt tensioning and tracking extend this duration significantly. You should perform monthly visual inspections to catch broken links early.

Q: How do you calculate the required heating zone length for a specific lbs/hour production volume?

A: You calculate heating zone length using part mass, belt speed, and required time-at-temperature. Multiply the required soak time by the belt speed. Ensure the furnace provides enough thermal input to heat the specific mass per square foot. Vendors use these calculations to size the hot zone properly.

Q: Can a continuous furnace seamlessly handle multiple types of brazing alloys in the same shift?

A: Handling multiple alloys seamlessly is extremely difficult. Different alloys require different thermal profiles and peak temperatures. Adjusting temperatures takes considerable time. You must let the furnace stabilize before running a different alloy. Failing to stabilize temperatures often leads to incomplete melting or severe joint failures.

Q: What are the primary safety and ventilation requirements for operating a continuous gas brazing furnace?

A: Safety requires strict gas handling protocols always. You must install proper exhaust hoods at both ends. Combustible atmospheres demand reliable burn-offs and flame curtains. Automated nitrogen purge systems and rapid gas shut-off valves are mandatory. They prevent explosive build-ups if facility power fails unexpectedly.
