Common Issues In Continuous Brazing Furnaces And How To Solve Them

High-volume manufacturing heavily relies on consistent thermal processing. A continuous brazing furnace acts as the absolute backbone of these modern operations. It processes thousands of critical components daily for automotive, aerospace, and HVAC applications. However, this continuous nature presents a massive hidden risk. Even a tiny one percent defect rate translates into disaster on the assembly line. It creates massive compounding costs in wasted materials and extensive rework. Many engineers fall into a vicious cycle of temporary fixes. They endlessly change chemical fluxes. They buy expensive new filler metals. Yet, they constantly miss the actual root cause of their failures. The real issue often lies much deeper in the physics of the process. It stems from poor furnace atmosphere control. It involves flawed thermal profiling across the heating zones. It connects directly to improper part fit-up before the parts even enter the chamber. We provide a systematic breakdown of common brazing failures here. We separate structural hardware limitations from easily correctable process errors. This guide helps production teams evaluate their true next steps. You can clearly determine whether to optimize your existing equipment or upgrade to highly precise modern systems.

Key Takeaways

• Atmosphere is Everything: Surface oxidation acts like a "non-stick coating," preventing capillary action; controlling dew point (often to -50ºF for stainless) is non-negotiable.

• The Golden Gap: No furnace can fix poor engineering. Capillary action requires a strict joint clearance of 0.001 to 0.005 inches.

• Hardware Trumps Chemistry: Switching to aggressive fluxes is a band-aid; resolving gas entrapment and blackening requires optimized gas flow dynamics and high-integrity cooling zones.

• Strategic Upgrades: Modern systems, like the NB Continuous Gas Brazing Furnace, solve legacy issues through precise Mass Flow Controllers (MFCs) and vibration-free belt transport.

The High Cost of Unresolved Brazing Defects in High-Volume Production

Compare traditional batch processing against continuous processing. A batch setup isolates thermal errors to a single run. A continuous process magnifies thermal errors rapidly across thousands of units. A localized issue will quickly ruin every part passing through a specific heat zone. Imagine a tiny dead zone in your protective gas flow. It will consistently oxidize hundreds of components placed on one side of the belt. This systemic destruction happens before operators even notice a problem.

Cost implications grow severe very quickly in high-volume settings. Failed joints inevitably lead to catastrophic field failures later. Customers experience unexpected fluid leaks in compressors. They face sudden mechanical shearing under intense physical load. These field failures trigger massive warranty claims. Such claims easily dwarf the initial capital required for proper furnace commissioning. Manufacturers lose brand reputation alongside hard revenue.

We must address a dangerous industry misconception right now. Many operators firmly believe increasing the filler metal volume solves weak joints. This myth wastes tremendous money on expensive alloys. Excessive filler cannot bridge wide physical gaps. Capillary action completely stops working past 0.005 inches. Adding more paste only masks deeper thermal issues. It hides severe atmospheric problems from your engineering team. You end up treating the symptom instead of curing the disease.

Issue 1: Braze Voids and Discontinuous Seams

Operators frequently observe a highly frustrating phenomenon. The filler metal melts perfectly during the active heat cycle. However, it fails to flow completely through the internal joint. This failure leaves dangerous empty pockets behind. We formally call these empty pockets voids. Voids create weak, discontinuous seams prone to mechanical rupture.

We classify the root causes into process issues and chemistry imbalances. First, we face the "Non-Stick" effect. Oxygen or moisture lingers in the furnace atmosphere. These contaminants react aggressively against the heated base metals. Chromium in stainless steel proves especially vulnerable to residual oxygen. This chemical reaction forms an invisible, dense oxide layer. The layer acts exactly like a non-stick pan coating. It completely blocks capillary wetting. The liquid metal simply beads up and rolls away.

Second, gas entrapment causes serious internal voids. High vapor-pressure elements outgas vigorously during rapid heating. Elements like zinc or cadmium boil off and create bubbles. Trapped chemical flux also blocks the filler's natural flow path. It creates hard physical barriers deep inside the joint.

You need specific, disciplined fixes to eliminate voids permanently.

1. Enforce rigorous pre-cleaning protocols daily using aqueous or solvent methods.

2. Remove all trace oils, stamping lubricants, and manufacturing greases.

3. Strictly adhere to the 0.001 to 0.005-inch joint clearance rule.

Hardware upgrades also play a crucial role in eliminating voids. Upgrade your atmosphere control systems immediately. The furnace must maintain a consistently low dew point throughout the cycle. Evaluate your current gas injection design carefully. Ensure the gas flow physically flushes out vaporized contaminants. The injection system should never trap dirty gas inside the muffle.

Issue 2: Part Oxidation and Surface Blackening

Parts sometimes exit the cooling zone looking terrible. They feature a heavily discolored, blackened, or scaly exterior surface. This ugly finish forces manufacturers to implement secondary mechanical cleaning. Highly toxic chemical acid baths become necessary. These extra processing steps completely destroy your production efficiency and add massive labor hours.

Thermal leaks and atmospheric failures cause this severe surface degradation. Cooling zone contamination ranks as the primary physical offender. Parts face ambient oxygen exposure while still excessively hot. They remain well above their critical oxidation temperature when air hits them. A compromised physical exit curtain often causes this dangerous exposure. A poorly designed water-jacketed cooling zone also contributes heavily. Scale buildup inside water jackets creates uneven cooling rates.

Atmosphere "dead spots" create identical headaches inside the main heating chamber. Poor aerodynamic design inside the muffle allows ambient air leaks. Outside air sneaks in and totally disrupts the protective gas blanket. Your expensive hydrogen and nitrogen mix fails to shield the bare metal.

Implement strict process fixes first. Verify the absolute purity of your incoming bulk gas lines. Eliminate any physical facility drafts near the furnace exit. Shield the exit doors from large factory fans.

Next, apply essential hardware fixes. Implement continuous oxygen monitoring sensors in the hot zone. Install precise dew point monitoring equipment. Ensure your facility uses high-grade alloy muffles. They require true zero-leakage welding construction. Optimized exhaust burn-offs also protect sensitive part surfaces by managing waste gases correctly.

Issue 3: Joint Weakness and Component Deformation

Sometimes the finished braze looks absolutely perfect. The fillet appears smooth, shiny, and visually complete. Yet, the joint fails instantly under basic physical load testing. In other severe cases, the base metal visually warps entirely out of shape. The component no longer fits into the final assembly.

Mechanical stress and thermal profiling errors drive these hidden failures. Rapid heating or rapid cooling induces massive thermal shock. This thermal shock creates highly uneven thermal expansion across the entire complex assembly. Different sections stretch and pull at different rates.

Mismatched metal expansion destroys joints during the cooling phase. Engineers sometimes place a high-thermal-expansion metal inside a low-expansion metal tube. The inner metal shrinks much faster during the cooldown. The joint physically pulls itself apart. We call these microscopic fractures shrinkage cracks. They severely compromise joint integrity.

Disturbed joints also fracture quite easily on moving belts. Mesh belts sometimes jerk, stutter, or vibrate. This happens during the critical liquid-to-solid transition phase. The liquid filler begins turning solid. Suddenly, a vibration completely shatters the fragile crystalline joint microstructure.

You can solve this by redesigning the joints early. Always place the high-expansion metal on the outside. This smart geometry creates a natural compressive force during cooling. The outer metal squeezes the inner metal tightly.

Hardware fixes demand superior precision thermal control. Utilize modern furnaces featuring multiple distinct heating zones. These zones must offer independent digital temperature control. They allow you to create a gentle, highly stepped thermal profile. Also, ensure your mesh belt drive system runs flawlessly. It must guarantee perfectly smooth, anti-surge operation using advanced motor drives.

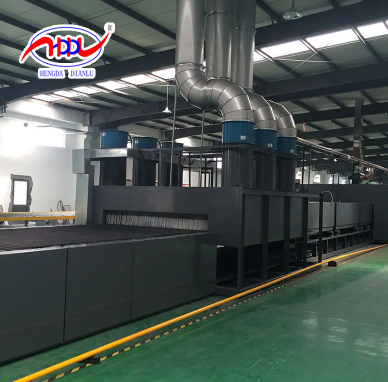

Overcoming Hardware Limitations: Evaluating an NB Continuous Gas Brazing Furnace

Process tweaks eventually stop working. When basic parameter adjustments fail, the underlying issue is often structural. Transitioning to a purpose-built system provides essential baseline stability. Legacy equipment simply lacks modern engineering precision. Upgrading to an NB Continuous Gas Brazing Furnace establishes a highly stable production environment. You instantly remove equipment variability from your daily troubleshooting equation.

Buyers must rigorously evaluate several key dimensions before making capital decisions.

• Gas Flow Management: Look strictly for integrated Mass Flow Controllers. MFCs automatically adjust your atmosphere composition in real time based on digital feedback. They eliminate the sloppy manual guesswork associated with old mechanical rotameters.

• Thermal Uniformity: Assess the internal heating element distribution carefully. Modern muffle design must ensure strict cross-belt temperature consistency. Perfect edge-to-edge uniformity prevents frustrating edge-part failures along the belt sides.

• Cooling Zone Efficacy: Evaluate the total functional length of the cooling section. Parts must exit the chamber well below their oxidation thresholds. You want to avoid rushed, stress-inducing water quenching methods entirely. A longer, highly efficient cooling jacket prevents post-braze distortion.

Implementation Realities: Transitioning Your Process

We must frame these adoption risks clearly for manufacturing leaders. Upgrading a continuous brazing furnace is rarely a simple plug-and-play event. Moving to a high-precision furnace uncovers hidden flaws elsewhere in your factory. It strictly requires upgrading your upstream manufacturing processes too.

You must meet certain stringent prerequisites for overall success. Loose stamping tolerances ruin perfect heat profiles. Sloppy CNC machining practices spell absolute disaster. A brand new, expensive furnace will never fix an existing high reject rate caused by bad dimensions. Parts must fit perfectly before they even touch the mesh belt.

Follow a strict engineering logic when shortlisting new thermal equipment. First, audit your current failure modes comprehensively. Ask your quality team very hard questions. Do you face a physical dimensional gap issue? Or do you battle a chemical atmosphere purity issue?

Next, request a thorough physical trial run. Work closely with the furnace manufacturer directly. Use your specific component assemblies during the live test. Validate their dew point capabilities thoroughly under real load conditions. Check the thermal profiling accurately across the entire belt width. Prove the results empirically before spending any capital budget.

Conclusion

Successful continuous brazing relies entirely on a strict mathematical relationship. You must perfectly balance mechanical joint design, precision thermal profiling, and absolute atmospheric purity. Stop blaming your filler metal for obvious hardware shortcomings. Manufacturers must systematically isolate every specific defect. Determine clearly if the error stems from poor part preparation or failing furnace capability. This decisive diagnostic approach quickly eliminates scrap and stabilizes your throughput.

Take decisive action today. Consult an experienced brazing equipment engineer immediately. Audit your current continuous furnace profile accurately using modern data loggers. Explore what advanced equipment capabilities can realistically do for your most demanding production lines.

FAQ

Q: Why are my brazed parts coming out with a dull, frosty appearance?

A: A dull or frosty surface typically indicates a disturbed joint. This defect happens when the assembly experiences belt vibration or jerking during the liquid-to-solid transition phase. The mechanical movement fractures the delicate crystal microstructure. Inadequate pre-heating can also cause this rough texture. Ensure your mesh belt drive operates smoothly using anti-surge motors and employ a stepped thermal profile.

Q: Can I fix a wide joint gap by using more braze paste in a continuous furnace?

A: No, you cannot. Capillary action completely fails when physical joint gaps exceed 0.005 inches. Adding more braze paste simply causes the liquid filler to pool up or run off the part entirely. The furnace cannot overcome poor machining tolerances. You must enforce strict joint clearances between 0.001 and 0.005 inches.

Q: What is the ideal dew point for continuous brazing of stainless steel?

A: You need a dew point of -50ºF or lower in a pure hydrogen atmosphere. Stainless steel contains heavy amounts of chromium. Chromium forms a highly stable oxide layer even in extremely low oxygen environments. Maintaining this ultra-low dew point actively reduces chromium oxides. It allows the liquid filler metal to wet the surface properly.

Q: Why is my furnace atmosphere failing to prevent oxidation?

A: Oxidation occurs when ambient air breaches your protective gas blanket. Common culprits include physical stress leaks in the alloy muffle. An impure incoming bulk gas supply also ruins the atmosphere. A compromised exit curtain allows massive air ingress. Poor aerodynamic design inside the chamber creates dead spots. These stagnant spots trap oxygen and ruin the part surface.

Q: How do I prevent shrinkage cracks between dissimilar metals?

A: Shrinkage cracks happen due to heavily mismatched thermal expansion rates. You can prevent this physical tearing through smart engineering design. Always place the metal featuring the higher expansion rate on the exterior of the joint. As the whole assembly cools, the outer metal shrinks much faster. This naturally creates a strong compressive force rather than pulling the joint apart.
