Top Applications Of Continuous Brazing Furnaces In Aluminum Manufacturing

Modern aluminum manufacturing demands scalable, highly consistent joining solutions. Production managers, process engineers, and facility directors face relentless pressure to optimize output. You must balance strict quality standards against tight cost-per-part metrics. Shifting from batch vacuum brazing or manual flame brazing to continuous Controlled Atmosphere Brazing (CAB) provides a decisive operational advantage.

Old batch processes create severe production bottlenecks. Manual operations introduce human error and quality variations. High-volume environments cannot tolerate these inefficiencies. A continuous flow system standardizes the entire thermal cycle. It ensures identical heating profiles for thousands of complex components daily.

This article establishes the technical and economic rationale for adopting continuous CAB technology. We bridge the critical gap between specific aluminum joining applications and exact equipment configurations. You will learn how precise temperature uniformity, targeted heating modalities, and meticulous atmosphere control transform production lines. You will also discover how to navigate metallurgical limitations and facility rollout challenges effectively.

Key Takeaways

• Continuous CAB drastically reduces per-part processing costs and eliminates post-braze cleaning by utilizing non-corrosive potassium fluoroaluminate fluxes in a nitrogen atmosphere.

• Automotive and off-highway heat exchangers (radiators, condensers, EV cooling plates) represent the primary applications due to the process's ability to minimize batch variation and micro-leaks.

• Successful implementation requires specifying exact temperature uniformity (±3°C in the 575°C–610°C braze zone) and precise atmosphere control (oxygen <100 ppm, dew point ≤-40°C).

• Selecting the right heating technology (pure radiation vs. convection) depends entirely on product mix diversity and production cycle targets.

The Business Case for Continuous Flow in Aluminum Brazing

Manufacturing facilities constantly battle production bottlenecks. Batch processes, like vacuum brazing, often limit total factory output. They suffer from exceptionally long cycle times. You must pump the chamber down to a deep vacuum. You also face complex maintenance challenges. Vacuum systems rely on magnesium to act as a getter. This magnesium evaporates and builds up on chamber walls. Managing this buildup wastes valuable production hours.

Manual torch brazing presents entirely different risks. Operators apply heat locally. This method easily causes localized overheating. Base metal degradation occurs frequently. Joint consistency drops, and scrap rates climb.

The continuous brazing furnace eliminates these variables entirely. It ensures an identical thermal profile for every single part passing through the heating zone. You achieve absolute standardization. This stable environment optimizes capillary action for Al-Si eutectic fillers. Standard alloys like 4343 and 4045 flow smoothly and predictably. The system significantly reduces void rates. Joint failures become extremely rare.

Evaluating this upgrade requires analyzing the cost-to-outcome ratio. High-volume operations benefit immensely from a continuous flow setup. You must dedicate significant floor space to the equipment initially. However, the continuous throughput yields a substantially lower cost-per-part. Labor costs drop. Rework expenses vanish. Yield rates stabilize at near-perfect levels.

Core High-Volume Applications in Aluminum Manufacturing

Automotive heat exchangers dominate continuous CAB applications. Radiators, heater cores, and condensers require thousands of flawless joints. These assemblies rely on extremely tight capillary clearances. Ideal gaps measure between 0.10 and 0.15mm. Continuous furnaces manage these tight tolerances perfectly. The non-corrosive flux melts, breaks the oxide layer, and lets the Al-Si filler flow into every micro-crevice. You achieve leak-free, multi-joint assemblies consistently.

Off-highway and heavy-duty coolers push manufacturing limits further. These include large-scale plate and bar heat exchangers. They operate in extreme environments like mining and agriculture. They demand robust, defect-free joints. Pure continuous mesh belt furnaces handle standard sizes easily. However, you might encounter massive parts with varying weights. Semi-continuous configurations work best here. Indexing setups accommodate massive thermal mass differences. They do this without sacrificing continuous throughput entirely.

Electric vehicle (EV) battery thermal management introduces new complexities. Manufacturers must braze complex aluminum cold plates. These plates contain intricate internal cooling channels. They feature very thin-walled structural components. These walls distort easily under rapid temperature changes. The process requires continuous, slow, even heat. Controlled thermal ramping prevents base metal distortion. The parts maintain strict dimensional tolerances necessary for battery cell mounting.

Evaluation Criteria for a Continuous Brazing Furnace

Temperature uniformity dictates your brazing success. The aluminum melting window is notoriously narrow. Aluminum melts around 660°C, while filler alloys melt near 577°C. You operate within a highly restricted thermal band. Equipment must guarantee a braze zone product temperature differential of less than ±3°C. High-precision control instruments are mandatory. You need sensors offering ±0.2°C accuracy. Anything less risks incomplete joints or melted base metals.

You must evaluate different heating modalities carefully. Your choice between convection and radiation impacts production directly.

• Radiation Heating: This method works best for high-volume, homogenous product lines. Radiant tubes heat the chamber uniformly. It suits facilities running identical parts continuously.

• Convection Heating: This approach uses fans to circulate hot gas. It acts as the ideal solution for rapid heating. You can achieve cycle times as short as 5 minutes. It offers tighter temperature control across varying part masses.

Atmosphere and shielding represent the next critical evaluation phase. CAB requires a high-purity nitrogen environment. Oxygen destroys the process. Evaluate the equipment based on its ability to maintain this purity. Look for designs featuring physical atmospheric shielding blockers. These sit at the entrance and exit. They prevent room air from entering the chamber. Real-time, high-precision oxygen analyzers must monitor the zone continuously.

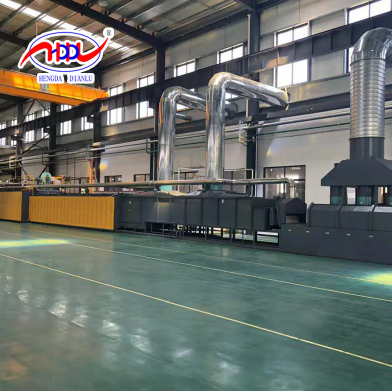

When you evaluate specific solutions, look at integrated engineering. Models like the NB Continuous Gas Brazing Furnace offer distinct advantages. Buyers must assess the integration of frequency-controlled stepless transmission belts. These belts prevent jerky movements. They keep fragile liquid joints intact. Internal gas generation and recovery systems are also vital. They capture escaping heat and reduce ongoing energy demands significantly.

Navigating Metallurgy: Flux Management and Alloy Limitations

Metallurgical constraints dictate your process limits. Magnesium presents the biggest hurdle in aluminum CAB. Standard NOCOLOK flux fails when the aluminum alloy magnesium content exceeds 0.3%. The flux reacts with the magnesium. It forms a high-melting compound called potassium magnesium fluoride (KMgF3). This compound acts like a physical barrier. It stops capillary action completely.

You must audit your alloys carefully. If your application requires higher strength alloys, magnesium levels often rise. Evaluate whether you need specialized Cesium (Cs) flux. Cesium flux handles magnesium contents up to 0.5%. It alters the chemical reaction. It forms a lower-melting compound that allows the filler to flow naturally.

A true continuous line requires complete process integration. A furnace alone cannot produce finished parts. You must link multiple stages together seamlessly.

1. Thermal Degreasing: Remove forming oils and lubricants. Residual oils turn into carbon deposits inside the furnace.

2. Flux Application: Coat the assembly evenly. Automated spray systems ensure consistent coverage without wasting expensive flux.

3. Powerful Dry-Off: Eliminate all water from the flux mixture. Residual moisture ruins the nitrogen atmosphere. It breaks down into oxygen and hydrogen at high temperatures.

4. Brazing and Cooling: Melt the filler, form the joint, and solidify the metal under controlled conditions.

Emerging fluxless technologies are changing industry standards. Advanced materials, like TRILLIUM® composite cladding, embed the flux directly into the aluminum sheet. Manufacturers bypass the degreasing and fluxing stages entirely. You eliminate wet chemistry from your factory floor. This advancement dramatically changes the ROI calculus for continuous furnace investments. It simplifies the equipment footprint and lowers utility demands.

Implementation Risks and Facility Rollout

Facility rollout requires meticulous planning. Continuous lines consume significant linear floor space. You cannot easily bend or fold a continuous mesh belt. Facility directors must map their layouts accurately. Traditional radiation furnaces span massive distances.

You can mitigate this footprint risk through technology. Discuss forced-circulation convection pre-heating with your supplier. Convection transfers heat much faster than radiation. This rapid energy transfer can reduce the physical pre-heat length. You can shorten the furnace by up to 50% compared to traditional models. This space savings opens up valuable factory real estate.

Utility consumption poses a major operational challenge. High-purity nitrogen serves as an ongoing expense. You must pump it continuously to maintain the protective atmosphere. Equipment evaluation must rigorously account for refractory material quality. High-grade insulation prevents heat loss. Gas-curtain efficiency matters just as much. Curtains limit gas loss at the entrance and exit doors. Poorly designed curtains bleed expensive nitrogen into the factory.

Cooling zone configurations dictate final part quality. Proper metallurgical solidification requires strict thermal management. You cannot simply blast hot parts with cold air. You must use multi-stage cooling.

Begin with an air seal cooling section. This drops the temperature slowly while the filler solidifies. It prevents thermal shock and cracking. Follow this with a direct water or forced-air quench. This rapid cooling meets strict metallographic structure requirements. It locks in the alloy strength. Well-designed cooling zones also maintain a clean factory environment. They capture residual heat and exhaust it safely outside.

Conclusion

Selecting the ideal aluminum brazing equipment requires careful analysis. Base your final equipment decision on the Production Triangle. You must balance total volume, product mix variety, and available floor space. High volume combined with low product mix demands a fully continuous mesh belt furnace. Conversely, heavy components or high mix varieties lean toward semi-continuous indexing systems.

Take proactive next steps to ensure a smooth transition. Follow these action items before issuing your request for quotation (RFQ):

• Audit your current alloy specifications immediately. Pay special attention to the exact magnesium content.

• Map your factory floor footprint. Measure linear space availability accurately.

• Request thermal uniformity mapping data (TUS) from furnace OEMs. Verify their claims of ±3°C precision.

• Calculate your projected nitrogen consumption based on the manufacturer's gas-curtain design.

FAQ

Q: What is the difference between vacuum brazing and continuous CAB?

A: Vacuum brazing uses magnesium as a getter to break surface oxides without flux. It requires batch processing, deep vacuum pumping, and heavy maintenance to clean magnesium deposits. Continuous CAB uses a nitrogen atmosphere and non-corrosive flux. It operates continuously, offering much higher throughput and lower maintenance for standard aluminum alloys.

Q: What is the standard temperature range for a continuous aluminum brazing furnace?

A: The operational brazing zone typically sits between 575°C and 610°C. This specific window activates the Al-Si filler metal, allowing it to melt and flow via capillary action. It remains low enough to prevent the base aluminum structural components from melting.

Q: How does a continuous furnace reduce flux usage?

A: The furnace utilizes a highly stable, high-purity nitrogen cover gas. This inert environment minimizes oxidation during the heating cycle. With fewer oxides forming in the chamber, you require less flux to break down surface barriers. This results in cleaner joints, fewer post-braze voids, and reduced chemical costs.
