Aluminum radiator manufacturing demands a delicate balance between high-volume throughput and strict leak-proof quality. You face intense pressure from automotive supply chains to deliver flawless parts continuously. Traditional batch processing methods create serious bottlenecks on the factory floor. Manual joining techniques inevitably lead to inconsistent joint integrity across large production runs. Operators struggle to maintain steady output when equipment requires constant loading and unloading.
The transition to controlled atmosphere systems offers a highly reliable solution. It has quickly become the absolute standard across the global automotive industry. This upgrade eliminates the stop-and-go inefficiency inherent in older vacuum systems. It also reduces heavy maintenance overhead dramatically.
This guide breaks down the technical and commercial advantages of modern heating systems. We will explore the specialized architecture required for reliable metal joining. You will discover a clear evaluation framework. Plant managers and production engineers can use these insights to upgrade their heat exchanger lines confidently.
Key Takeaways
Continuous Flow Economics: Conveyor-driven systems eliminate manual batch loading, enabling uninterrupted 24/7 production and lowering the per-unit processing cost.
Reduced Maintenance Burden: Unlike vacuum brazing which requires frequent mechanical cleaning of magnesium vapor deposits (MgO), CAB continuous furnaces use non-corrosive flux, drastically reducing downtime.
Precise Thermal Control: Advanced convection heating achieves tight temperature uniformity (often ±3℃), which is critical given the narrow window between aluminum brazing temperatures and base metal melting points.
Atmospheric Stability: High-yield production relies on maintaining strict atmospheric baselines, specifically oxygen levels below 100 PPM and dew points below -40℃.
The Business Case: Continuous CAB vs. Batch Vacuum Brazing
You must evaluate equipment upgrades by looking at daily throughput and operational scalability. Batch vacuum furnaces inherently operate on slow, intermittent cycles. Operators must manually load parts into the chamber. The system then pulls a deep vacuum before heating begins. It must cool down completely before anyone can unload the finished radiators. This start-and-stop nature limits daily output severely.

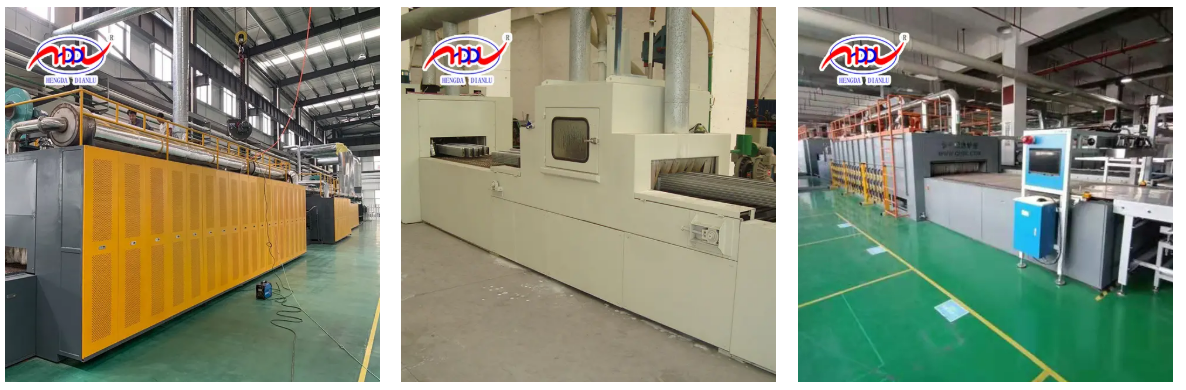

A continuous brazing furnace operates on a completely different paradigm. It creates a highly predictable, steady-state flow. Parts move constantly on a durable conveyor belt through various heating zones. High-frequency turnover becomes the standard operating procedure. These continuous lines are optimized specifically for large-scale automotive radiator orders. You eliminate idle downtime between cycles entirely.
Maintenance burdens differ wildly between the two technologies. Vacuum systems demand extremely expensive pumping equipment. They rely on magnesium vaporization to break down surface oxide layers on the aluminum. This vaporized magnesium eventually condenses. It deposits thick layers of residue inside the cold walls of the chamber. You must shut down the equipment frequently. Your maintenance team must perform intense, grueling mechanical cleaning to remove this stubborn residue.
Continuous Controlled Atmosphere Brazing (CAB) avoids this messy scenario. These systems utilize a pure nitrogen atmosphere. They combine this environment with a specialized, non-corrosive potassium fluoroaluminate flux. The flux cleans the metal perfectly during heating. It leaves behind a tightly adhered, harmless residue on the radiator surface. You completely eliminate the need for post-braze washing. Ongoing technical maintenance drops significantly as a result.
Initial footprint considerations often worry production managers. The physical length and gas consumption of continuous lines look substantial on paper. However, you dramatically reduce manual labor costs. You eliminate post-process chemical washing stages from your plant floor entirely. You also prevent massive production interruptions tied to vacuum pump failures. High-volume manufacturers typically experience a fast, aggressive payback period. Output scales upward effortlessly while your unit costs shrink.

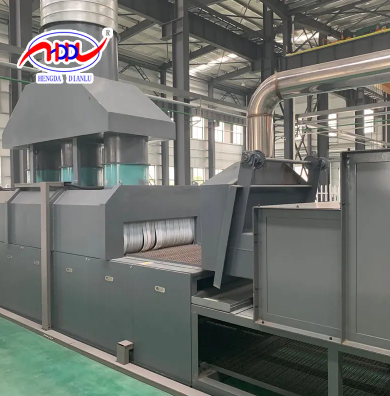

The 5-Stage Architecture of a Continuous Brazing Line
Modern conveyor systems rely on a strictly phased thermal sequence. You cannot rush parts into high heat immediately. The system manages the precise physical and chemical transformation of the metals across five distinct stages.
Thermal degreasing represents the necessary first step. Stamping and forming operations leave volatile lubricants on the aluminum parts. You must evaporate these oils completely. The thermal degreaser operates safely between 250℃ and 300℃. This heat burns off the residue cleanly without causing oxidation. It replaces messy, environmentally hazardous chemical washing tanks.

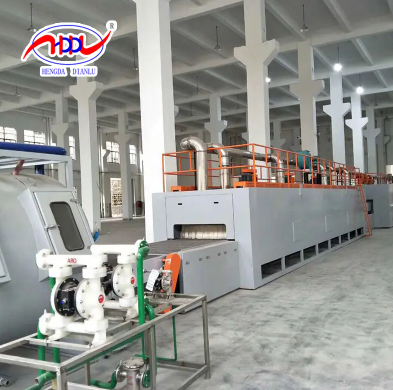

Flux application and drying follow the degreasing phase. The system applies flux using continuous spraying or targeted blowing mechanisms. An integrated dry-off oven immediately follows this station. The oven circulates hot air aggressively to remove all moisture. It drives off physical surface water rapidly. It also breaks down chemically bound water trapped within the flux mixture. Parts must exit this section completely dry before facing extreme heat.
Preheating brings the aluminum radiators up to the target threshold rapidly. Engineers typically choose between convection or radiation technologies for this stage. Convection technology excels here. It circulates hot gases to transfer heat much faster. Parts heat up more uniformly across their entire geometry. This rapid transfer can actually reduce overall equipment length. You save highly valuable floor space inside your plant.
The main heating chamber handles the most critical chemical reactions. Temperatures peak between 595℃ and 605℃. The flux melts earlier, usually around 565℃. It actively dissolves stubborn oxide layers clinging to the aluminum surface. Shortly after, the aluminum-silicon filler metal reaches its liquidus state near 577℃. Capillary action pulls the liquid filler deep into every joint.
Multi-stage cooling prevents catastrophic metal warping. Radiators cannot cool down too aggressively. The conveyor transitions parts through an intermediate air-sealed cooling chamber first. Then they enter a final direct cooling zone. This controlled, multi-stage approach ensures proper joint solidification. It prevents sudden thermal shock to the delicate fins. It also locks out atmospheric contamination while the filler metal hardens.
Architecture Stage
Temperature Range
Primary Function
1. Thermal Degreasing
250℃ – 300℃
Evaporate volatile stamping lubricants cleanly
2. Fluxing & Drying
90℃ – 200℃
Apply compound and remove physical/chemical moisture
3. Convection Preheating
Up to 500℃
Bring mass up to thermal threshold rapidly
4. Main Brazing Chamber
595℃ – 605℃
Melt flux to strip oxides and flow filler metal
5. Multi-Stage Cooling
Down to ambient
Solidify joints without thermal shock or oxidation
Evaluation Criteria for Procurement: Specifying the Right Furnace
Procurement teams face critical technical choices when specifying new production lines. You must match the heating mechanisms to your actual product mix. Evaluating radiation versus convection heating is the most consequential decision you will make.
Radiation heating systems generally present a lower initial capital cost. They consume less protective gas during operation. They feature fewer moving parts internally. These models work best for continuous, uninterrupted runs of identically sized radiators. If your facility produces the exact same heat exchanger 24/7, radiation provides a highly economical path.
Convection heating demands a noticeably higher initial investment. However, it delivers an impressive ±3℃ temperature uniformity across the entire belt width. It enables much faster processing cycles. Some cycles drop as low as 5 minutes in the main chamber. Convection becomes absolutely essential for mixed-production facilities. You can process thin-walled automotive radiators alongside heavier commercial bar heat exchangers without constantly recalibrating the equipment.
Evaluation Metric
Radiation Heating
Convection Heating
Capital Cost
Lower initial investment
Higher initial investment
Temperature Uniformity
Adequate (±5℃)
Exceptional (±3℃)
Cycle Speed
Standard
Very Fast (up to 50% faster)
Product Flexibility
Low (Best for uniform batches)
High (Best for mixed part sizes)
Atmosphere and gas management dictate your final product yield. You need strict guarantees regarding internal environmental stability. High-end systems maintain a deeply inert nitrogen environment. Oxygen levels must stay strictly below 100 PPM. Dew points must remain below -40℃. Look for heavy-duty shielding blockers at the entry and exit portals. These physical barriers prevent outside room air from contaminating the internal heating zones.

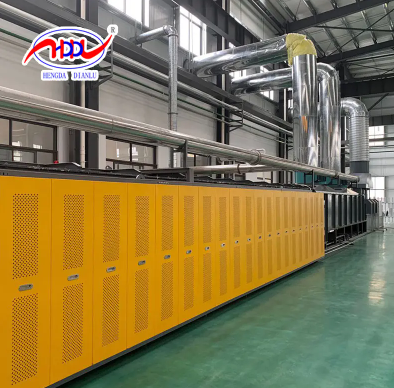

Energy efficiency heavily impacts your operational budget. You should actively evaluate waste heat recovery options. Consider your plant's specific fuel and electrical infrastructure setups carefully. High industrial electricity rates often erode profit margins. For these specific scenarios, evaluating an NB Continuous Gas Brazing Furnace makes exceptional sense. It offers intense, scalable heat using natural gas. This provides distinct localized operational cost advantages compared to pure electric resistance heating.
Process flexibility matters for mid-sized manufacturers. Assess whether the system allows for temporary stand-by modes. Some facilities do not run full 24/7 shifts all year long. Semi-continuous capabilities help conserve nitrogen gas and burner power during shift changes. They allow operators to pause the line safely and resume without triggering massive delays or ruining parts.
Implementation Realities: Process Control and Risk Mitigation
Installing new equipment introduces new process variables. You must master the physical realities of aluminum metallurgy to maintain high yields. The margin for error remains notoriously thin.
Managing the hold time window requires absolute vigilance. Aluminum alloys melt extremely close to the required processing temperatures. The base metal and the filler metal behave very similarly under high heat. Prolonged exposure at peak temperatures causes core erosion. The liquid filler metal will aggressively eat into the base aluminum tubes. Procurement teams must ensure the system features ultra-responsive logic controllers. You must strictly limit peak temperature hold times to just 3 to 5 minutes.
Furnace upgrades must align perfectly with your mechanical joint designs. You cannot force poor physical designs to join properly. A continuous CAB process requires highly precise lap joint clearances. You typically need 0.10 to 0.15 mm gaps for unclad aluminum materials. This specific gap creates the optimal capillary action. It pulls the liquid filler metal upward against gravity smoothly. If gaps exceed 0.20 mm, the liquid pooling fails, and you get devastating leaks.
Tooling and fixturing choices directly affect your uptime. Heavy steel fixtures absorb too much heat. They also expand unpredictably, crushing delicate radiator cores. We strongly emphasize using specialized non-metallic fixtures. Refractory materials like advanced ceramics perform brilliantly on the conveyor belt.
Ceramics possess low thermal mass, allowing them to heat and cool quickly without wasting energy.
They naturally prevent molten aluminum from sticking to the fixtures.
They resist mechanical degradation even after thousands of extreme thermal cycles.
They maintain their geometric stability, ensuring radiators stay perfectly aligned.
Implement strict risk mitigation procedures immediately after commissioning your new line. Follow a rigid schedule to prevent slow yield degradation over time.
Calibrate your internal thermocouples monthly to verify the critical ±3℃ uniformity.
Monitor nitrogen flow rates automatically to trigger alarms if oxygen exceeds 100 PPM.
Verify lap joint gaps on incoming core assemblies before they enter the degreasing zone.
Inspect all ceramic fixtures for micro-cracks or wear at the end of every production week.
Conclusion
Transitioning to a conveyor-driven heating system shifts your entire production baseline. It moves radiator manufacturing away from bottlenecked, high-maintenance routines. It creates a predictable, easily scalable daily operation. You gain precise control over output while eliminating messy post-process chemical washing entirely.
Equipment buyers should prioritize tight temperature uniformity specifications above all else. Robust atmosphere control safeguards matter significantly more than the cheapest baseline capital cost. Investing in superior convection heating and strict gas management ensures long-term yield stability. It prevents scrap rates from eating your profits.
Start by auditing your current factory throughput limits today. Map out your available floor space accurately. We encourage you to consult directly with an industrial equipment engineer. They can help you model the exact ROI of a convection-based or gas-fired continuous line tailored to your facility's unique operational footprint.
FAQ
Q: What is the ideal temperature range for aluminum radiator brazing in a continuous furnace?
A: The process operates in a very narrow thermal window. Peak temperatures generally stay between 595℃ and 605℃. The flux melts first around 565℃ to clean the metal. The aluminum-silicon filler metal then reaches its liquid state near 577℃. Strict control prevents the base aluminum from melting.
Q: Do parts need to be cleaned after exiting a continuous CAB furnace?
A: No. The controlled atmosphere process uses a specialized non-corrosive flux. Once melted, this potassium fluoroaluminate compound turns into a thin, tightly adhered residue. It remains completely harmless to the radiator surfaces. This eliminates all post-braze washing and chemical cleaning requirements entirely.
Q: How does a continuous furnace maintain its atmosphere without vacuum pumps?
A: It relies on positive pressure from continuous nitrogen purging. The system features structural air seals at the entry and exit points. Physical shielding blockers also prevent external room air from entering. This constant outward flow keeps oxygen levels strictly below 100 PPM and dew points below -40℃.
