Continuous Brazing Furnace Vs Batch Brazing Furnace: Which Is Better For Your Factory?

Scaling manufacturing operations often hits a sudden bottleneck at the heat treatment stage. Selecting the wrong brazing equipment limits throughput, spikes energy costs, and inevitably compromises joint consistency. You need a system built for your actual production reality.

The decision fundamentally comes down to striking the right balance. You must weigh trade-offs between the production flexibility of batch processing and the scale-economy throughput of inline systems. A misstep here traps you into years of inefficient workflows. Managers who misunderstand these thermal dynamics often end up fighting their own equipment to meet delivery quotas.

This article provides plant managers and production engineers with an evidence-based framework for evaluation. We will explore operational costs, facility requirements, and yield impacts to help you choose your next furnace. By the end, you will know exactly which thermal processing path aligns best with your factory goals.

Key Takeaways

• Batch Furnaces excel in high-mix, low-volume environments requiring specialized thermal profiles (e.g., aerospace, medical devices) and offer lower initial capital expenditure.

• A continuous brazing furnace is engineered for mass production, delivering superior part-to-part consistency and lower per-unit labor costs.

• Equipment footprint, utility infrastructure (gas/power availability), and required cycle times are the top three disqualifiers during the evaluation phase.

• Integrating systems like an NB Continuous Gas Brazing Furnace requires upfront planning for continuous material handling but yields significant ROI in high-volume automotive or HVAC applications.

Defining the Production Bottleneck: Batch vs. Continuous Paradigms

Manufacturing bottlenecks rarely happen by accident. They occur when we mismatch our processing methodology with our production demand. To resolve this, we must first define the core operational paradigms shaping modern brazing operations.

The batch approach handles parts in discrete groups. Operators load components into a sealed chamber. The system heats, soaks, and cools the parts in one static location. This method prioritizes variable control over raw speed. You dictate the exact atmosphere, vacuum level, and temperature ramp rate for a specific load. Once finished, you extract the batch and start over.

Conversely, the continuous approach relies on uninterrupted movement. Parts travel through distinct, pre-heated temperature zones via a conveyor or mesh belt. This method prioritizes steady throughput and thermal stability. The furnace remains at operating temperature constantly. Operators place cold parts on one end, and brazed parts emerge from the other.

Misaligning these paradigms creates massive hidden costs. Using batch furnaces for mass production causes excessive idle time. Every heat-up and cool-down cycle wastes expensive energy. You lose hours waiting for the chamber to normalize. On the other hand, using continuous furnaces for small, disparate runs wastes valuable belt space. Stabilizing a continuous belt to accommodate wildly different temperature profiles takes time and burns fuel unnecessarily.

Batch Brazing Furnaces: The Case for Flexibility and Precision

Certain manufacturing environments demand ultimate adaptability. Batch brazing furnaces answer this call. They dominate facilities dealing with complex geometries, heavy multi-joint assemblies, and reactive materials. Aerospace and medical device sectors heavily rely on them to achieve high-vacuum environments.

The primary performance advantage is absolute control. You can run completely different thermal profiles back-to-back. If shift one requires a slow heat ramp for thick copper assemblies, the batch furnace easily adapts. If shift two requires a rapid cycle for thin stainless steel, you simply reprogram the controller. Batch systems also offer tighter control over atmosphere purity. Sealing the chamber completely allows deep vacuum levels impossible to achieve on an open-ended continuous belt.

Furthermore, batch systems boast a smaller overall factory footprint compared to sprawling inline systems. You can tuck them into tighter facility corners. They do not require long, linear staging tracks.

However, these benefits come alongside strict operational limitations. Energy efficiency drops significantly. You pay to heat and cool the entire heavy chamber lining during every single cycle. This thermal cycling wastes immense amounts of power or gas. Additionally, batch systems remain heavily reliant on human labor. Operators must manually load intricate fixtures, seal the chamber, and unload the heavy racks once cooled. This prevents true automated flow.

Continuous Brazing Furnaces: Scaling for Mass Production

When you scale operations to thousands of units per day, flexibility becomes secondary to repeatability. This is the exact domain of the inline mesh belt. These systems target automotive radiators, HVAC heat exchangers, and standardized mass-market components. They thrive wherever parts flow constantly.

Throughput forms the biggest performance advantage. A continuous brazing furnace entirely eliminates the heat-up and cool-down cycle times inherent in batch processing. The heating zones never turn off during a shift. This steady-state operation pushes parts through continuously, generating massive scale economies.

Thermal consistency also improves drastically. Every single part experiences the exact same time-temperature profile as it travels down the belt. This uniformity reduces variance. It minimizes warping, prevents localized overheating, and dramatically drops defect rates. You get predictable, repeatable joints load after load.

Automated integration becomes much simpler here. You can easily pair these furnaces with upstream automated assembly stations. Downstream inspection lines can receive cooled parts directly from the discharge belt. This eliminates the "wait-and-move" forklift traffic seen in batch operations.

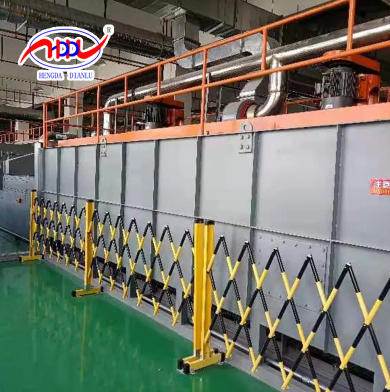

Consider technology currently operating in the field. Integrating an NB Continuous Gas Brazing Furnace demonstrates this perfectly. This equipment utilizes specialized gas-fired zoned heating. Zoned heating optimizes energy expenditure across different stages of the continuous run. It ensures the flux activation zone and the brazing zone maintain distinct, precise temperatures without inter-zone interference. Real-world applications consistently prove this yields cleaner joints and robust energy savings at scale.

Head-to-Head Evaluation: Core Decision Dimensions

Choosing your next furnace requires a clinical look at operational realities. You must move past basic specifications and evaluate how the equipment integrates into your business model. We break this down into three critical dimensions.

Capital Expenditure (CapEx) vs. Operating Expenses (OpEx)

Financial officers often focus entirely on the initial price tag. This approach distorts the actual manufacturing reality. We must balance CapEx against long-term OpEx.

• Batch Furnaces: They usually require lower initial CapEx. The equipment is self-contained. However, they generate higher OpEx per part as volume scales. Energy waste from thermal cycling drives utility bills up. High labor dependency also inflates the cost per cycle.

• Continuous Furnaces: They demand higher upfront investment. The extensive conveyor mechanisms, multi-zone controllers, and longer heating muffles cost more. Yet, they achieve massive scale economy. Once running steadily, they offer the absolute lowest per-unit brazing cost.

Facility Footprint and Utility Requirements

Physical plant constraints immediately disqualify certain options. You cannot install what you cannot fit or power.

Evaluate the linear floor space required for continuous mesh belts. An inline system easily spans sixty feet or more. You need uninterrupted straight-line real estate. Batch furnaces utilize a vertical or compact square footprint. They fit easily into modular work cells.

Next, assess your utility limits. Continuous gas supply must remain stable for large multi-zone systems. You must verify peak electrical draw requirements. Batch furnaces spike power during their initial heat ramp. Continuous systems draw heavy power constantly, requiring robust, dedicated substations.

Maintenance and Uptime Realities

Furnaces endure extreme thermal stress. Maintenance profiles differ wildly between the two paradigms.

• Batch Maintenance: You will fight seal degradation. The constant opening and closing of hot doors ruins gaskets. Vacuum pump maintenance requires strict attention. Also, thermal cycling causes heavy fixture wear due to repetitive expansion and contraction.

• Continuous Maintenance: You face different enemies. Belt tracking issues disrupt production immediately. Continuous motor wear requires proactive replacement schedules. Finally, muffle replacement risks present major downtime events. When an inline muffle cracks, the entire line stops.

Implementation Risks and Rollout Considerations

Buying the furnace is merely the first step. Installing and commissioning it uncovers several hidden risks. Poor planning here delays production by months.

First, beware the hidden floor space problem. Engineers often measure only the furnace chassis. They forget to account for staging areas required to load the belt. They overlook the extensive cooling water loops necessary to manage discharge temperatures. Exhaust management systems also require significant overhead clearance. You must map the entire thermal ecosystem, not just the steel box.

Second, anticipate tooling and fixture costs. Continuous furnaces require specific, lightweight fixtures. These carriers must survive continuous thermal travel without adding dead thermal mass. Heavy cast fixtures rob heat from your parts, forcing you to slow the belt down. Designing thin, durable grid fixtures demands upfront engineering time and capital.

Third, respect the changeover penalties. We strongly warn against continuous furnaces if your factory runs ten or more different part sizes daily. Stabilizing a continuous furnace to a new temperature profile takes time. You waste energy and protective gas while waiting for the zones to balance. If your product mix fluctuates wildly, an inline system becomes a scheduling nightmare.

1. Map Facility Constraints: Verify gas pressures, exhaust paths, and power drops before ordering.

2. Design Custom Tooling: Partner with fixture engineers early to minimize thermal mass.

3. Plan Operator Training: Shift staff away from batch-loading mentalities toward continuous flow monitoring.

The Buyer’s Decision Matrix: Shortlisting Your Next Furnace

To eliminate ambiguity, we provide a concrete decision matrix. Base your final selection on actual shift volumes and part geometry standardization.

Choose a Batch Furnace If:

• Your total volume remains under roughly 500 parts per shift.

• Your product mix is highly variable, demanding daily profile changes.

• Your parts strictly require deep vacuum brazing (common in aerospace).

• Your facility floor space is strictly limited and cannot support linear tracks.

Choose a Continuous Furnace If:

• Your volume vastly exceeds 500 parts per shift.

• Your part designs remain highly standardized for long production runs.

• Minimizing labor cost per unit stands as your critical operational goal.

• Continuous inline manufacturing matches your overarching factory layout strategy.

Take immediate next-step actions to validate your choice. Audit your current scrap rates to see if inconsistent thermal profiles are to blame. Calculate the exact labor cost per batch cycle today. Finally, request sample thermal profiling from OEMs. They can run your exact parts through test furnaces to prove expected yields.

Conclusion

There is no universal "best" furnace on the market. We only find the correct furnace for a specific production volume and part geometry. Trying to force a batch system to do continuous work destroys your profitability. Similarly, forcing an inline system to run small, mixed batches ruins your efficiency.

Upgrading to a continuous inline system represents a massive strategic shift. You move your facility away from outdated "batch-and-queue" handling. You transition toward genuine inline manufacturing. This requires systemic factory alignment. Upstream stamping and downstream testing must match the new furnace speeds to realize true return on investment.

Before you issue an RFP, consult with thermal engineering specialists. Map your specific facility constraints, measure your power availability, and define your firm throughput goals. Let data, rather than assumptions, guide your capital equipment investment.

FAQ

Q: What is the difference in energy consumption between batch and continuous brazing furnaces?

A: Batch furnaces consume massive energy reheating their internal chambers from room temperature for every cycle. This thermal cycling is highly inefficient. Continuous furnaces eliminate this waste. They maintain a constant operating temperature. Once heated, you only expend energy to maintain the zone heat and warm the incoming parts, making continuous systems far more energy-efficient at scale.

Q: Can a continuous brazing furnace handle multiple part sizes?

A: Yes, but within strict limits. They handle multiple sizes easily if the mass and joint configurations require similar thermal profiles. However, if the new parts demand vastly different temperatures or belt speeds, they fail. Adjusting a continuous furnace to a new thermal equilibrium takes significant time and creates costly production gaps.

Q: Which furnace type is better for automated production lines?

A: Continuous furnaces integrate naturally with automated lines. Their open-ended design allows conveyor belts to feed parts directly into the heating zones. Robotic arms can place components on the belt and pick cooled parts from the discharge end without human intervention. Batch furnaces require manual door sealing and complex rack loading, resisting seamless automation.

Q: What is the typical ROI period for upgrading to a continuous furnace?

A: Most high-volume facilities see ROI within 18 to 36 months. This timeline relies heavily on two factors: labor reduction and scrap minimization. By removing manual batch-loading labor and drastically reducing defect rates through thermal consistency, the equipment rapidly pays for its higher initial capital expenditure.
