Manufacturing high-demand aluminum components like EV battery heat exchangers and automotive condensers demands rapid scale. You cannot simply build more batch facilities to meet this demand. Scaling production while facing strict environmental compliance mandates and cost-reduction pressures creates a massive operational hurdle. Traditional batch processing causes severe manufacturing bottlenecks. It introduces unacceptable loading and cooling downtimes into the daily schedule. These intermittent firing cycles also generate massive, unpredictable energy spikes across the entire plant. This guide provides plant managers and manufacturing engineers with a clear, evaluation-focused breakdown. We will explore how migrating to an NB Continuous Aluminum Gas Brazing Furnace permanently solves facility throughput caps. You will learn exactly how continuous flow architectures meet strict environmental mandates without compromising joint integrity.
Key Takeaways
Throughput Multiplication: Continuous processing eliminates manual loading and batch-cooling downtimes, directly accelerating cycle times.
Energy & Resource Reduction: Air-cooled island designs and optimized inert gas sealing significantly lower power, water, and gas consumption compared to legacy water-cooled batch systems.
Yield Consistency: Multi-zone PID closed-loop temperature controls prevent aluminum degradation, ensuring high-strength, clean joints at mass volume.
Seamless Integration: Modern continuous systems integrate directly into automated production lines with flexible changeover capabilities for diverse component sizes.
The Business Case: Overcoming the Limits of Batch Processing
Batch processing hides severe operational inefficiencies within the factory floor. Operators must manually load parts into the thermal chamber. They wait for the intensive heating cycle to finish. Then, they wait for the internal cooling cycle to complete before opening the doors. Every time the chamber cools down, you lose valuable thermal energy. You must burn significantly more fuel to reheat the heavy chamber walls for the next batch. This repetitive heating and cooling routine wastes massive amounts of electricity and gas. It also requires constant manual labor for repetitive loading tasks.
We can clearly see these inefficiencies when mapping out standard cycle times. Comparing the distinct operational stages reveals why continuous flow models easily outperform traditional methods.
Cycle Stage | Traditional Batch Model | Continuous Flow Model |
Loading | Manual stacking. Requires equipment downtime. | Automated feed. Zero production interruption. |
Heating | Starts from a lowered baseline temperature. | Maintains steady-state target heat continuously. |
Cooling | Entire chamber must cool before safe extraction. | Parts move through dedicated cooling zones. |
Turnaround | Long delays between individual product batches. | Instantaneous transitions between components. |
We must define what constitutes a successful equipment upgrade. A successful transition to a continuous brazing furnace requires three specific outcomes. First, you must achieve a lowered cost-per-part. Second, the equipment must stabilize your daily production rhythm. Third, the system must generate highly predictable facility energy loads. You eliminate sudden power spikes when the system runs at a constant state.
Core Mechanics of the NB Continuous Aluminum Gas Brazing Furnace

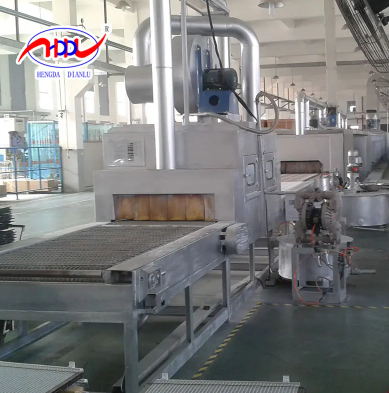

The solution architecture relies heavily on a continuous air-cooled island design. Parts move seamlessly via a specialized mesh belt conveyor. They travel through distinct thermal zones without any human intervention. The heating chamber remains perfectly sealed from the external factory environment. Operators place assemblies on the belt at the entry point. The conveyor smoothly transports them into the pre-heating zone, the main brazing chamber, and finally the cooling island.
Aluminum brazing requires extreme thermal precision. The process occurs at temperatures exceeding 450°C. This threshold sits perilously close to the melting point of the base metal. You risk catastrophic part deformation if the heat fluctuates even slightly. We solve this through multi-zone PID closed-loop temperature control. The system constantly monitors the thermal environment across different physical zones. It automatically adjusts gas flow and electric heating elements in real-time. This guarantees the components receive exact, uniform heat profiles.
Unpredictable events threaten high-volume production lines. Power outages destroy in-process products inside traditional chambers. Continuous systems feature robust built-in fail-safes. They utilize dedicated emergency drive systems. These backup systems automatically engage during an unexpected grid failure. They safely evacuate all in-process products from the high-heat zones. This prevents internal equipment damage and saves thousands of dollars in potential scrap.
Moving from legacy water cooling to modern air cooling transforms facility infrastructure. The air-cooled island design eliminates massive water waste. You no longer need to maintain complex plumbing systems. You never worry about toxic coolant leaks contaminating the shop floor. This architectural shift significantly lowers the overall facility carbon footprint. It simplifies routine maintenance schedules for the engineering team.
Advanced atmosphere optimization directly reduces resource consumption. Protective inert gases like nitrogen stop dangerous oxidation during the heating process. However, flooding an open system wastes expensive gas. Modern continuous designs feature advanced entry and exit sealing mechanisms. Specialized curtains and physical barriers trap the nitrogen inside the main heating chamber. They minimize the consumption of protective inert gases while maintaining perfect environmental purity.
Industry-standard energy recovery principles heavily influence equipment design. Practical reductions in fuel intensity require smart waste heat management. You capture exhaust heat to warm incoming cold components. We call this load preheating. The continuous flow model forces hot exhaust gases to interact safely with the entry zone. This direct thermal transfer reduces the raw energy required to reach final brazing temperatures.
The chemical process generates unavoidable flux impurities. The factory must manage these emissions safely. The furnace features specialized extraction points. It safely captures and manages flux vapors before they escape. Powerful internal scrubbers neutralize the compounds. Factory air stays exceptionally clean. The plant remains fully compliant with strict industrial emission standards.
Quality Consistency and Defect Reduction at Scale
Metallurgical integrity depends entirely on an unbroken temperature curve. The fluctuating environment of a batch chamber causes inconsistent capillary action. Capillary action pulls the melted filler metal into the joint. A continuous flow ensures the parts experience a steady, predictable heat climb. It yields stronger, more durable, and cleaner joints. The steady environment prevents micro-cracks from forming in the delicate aluminum fins.
Facilities rarely produce only one specific component type. You often need to process components of varying thicknesses simultaneously. The system handles mixed loads easily through variable belt speed drives. Operators can adjust the mesh belt velocity to match specific thermal mass requirements. You can run thick intercoolers and thin-walled condensers. Joint quality remains uniformly excellent across the entire product mix.
Consistent quality acts as a massive financial lever. It is not just an impressive technical specification. It serves as a direct driver of return on investment. High-volume automotive and industrial manufacturing demands near-zero defect rates. The continuous control model drastically reduces rework. It essentially eliminates thermal-related scrap rates. You transform variable quality risks into predictable economic yields.
Implementation Realities: Line Integration and Rollout
Plant managers must plan for transparent spatial requirements. Continuous furnaces require a distinct linear footprint. You must evaluate your existing factory layout before installation. Some facilities lack long, unbroken stretches of floor space. We solve this by utilizing pre-heating convection options. These compact modules rapidly heat the parts before they enter the main chamber. They shorten the required length of the primary heating zone. They optimize overall floor space without sacrificing line speed.
The continuous feed mechanism integrates smoothly with upstream automated assembly. Modern production lines utilize robotic arms for component stacking. The furnace belt acts as a natural extension of these automated systems. Parts roll out of the cooling island and head straight into downstream testing stations. The mesh belt matches the pace of the surrounding factory machinery.
Switching production between different SKUs represents a daily operational reality. You might run heavy intercoolers in the morning and standard radiators in the afternoon. Continuous systems occupy a highly profitable manufacturing "Goldilocks zone."
They provide massive output volumes similar to heavy industrial setups.
They require surprisingly low downtime for recipe adjustments.
They stabilize faster than traditional vacuum alternatives.
They allow operators to adjust belt speeds instantly via digital panels.
Conclusion
Transitioning to a continuous architecture aligns your production scale directly with modern ESG targets.
You must evaluate new systems strictly on precise temperature control capabilities and energy recovery features.
Air-cooled island designs eliminate the heavy maintenance burdens associated with legacy water-cooled piping.
Continuous processing permanently removes the hidden labor costs of batch loading.
Your engineering team should immediately audit current batch cycle times. Request a detailed throughput projection based on your specific component mix. Compare your current energy consumption against the estimated fuel usage of a continuous platform.
FAQ
Q: What makes the continuous air-cooled island design different from traditional water-cooled brazing furnaces?
A: The air-cooled island design completely eliminates the need for facility water plumbing. It cools parts using forced ambient air rather than circulating fluid. This removes the risk of water leaks. It drastically reduces daily energy consumption. It also simplifies routine maintenance tasks for your engineering crew.
Q: Can the NB Continuous Aluminum Gas Brazing Furnace handle different product sizes simultaneously?
A: Yes. The system utilizes multi-zone heating capabilities alongside variable speed drives. Operators can precisely control the mesh belt speed. This allows the furnace to properly heat thick automotive headers alongside very thin condenser fins without causing metallurgical degradation.
Q: How does a continuous furnace reduce inert gas consumption?
A: The system employs specialized atmosphere sealing mechanisms at both the entry and exit points. Physical curtains and calculated pressure zones trap the nitrogen inside the main heating chamber. This prevents the protective gas from escaping into the factory, drastically lowering hourly consumption rates.
Q: What are the primary maintenance differences between continuous gas brazing and vacuum brazing?
A: Continuous gas systems operate without complex vacuum pumps. You avoid the expensive, time-consuming pump maintenance inherent to vacuum technology. Gas continuous systems easily run 24/7. They utilize much simpler environmental controls, requiring fewer specialized technician hours to maintain.
Q: Is this furnace suitable for emerging EV (Electric Vehicle) manufacturing?
A: Absolutely. It is highly suited for EV component manufacturing. The precise thermal control handles the low-profile, complex geometries of high-demand EV battery heat exchangers. It ensures perfectly sealed joints, which are critical for advanced electric vehicle thermal management systems.
