Why Aluminum Brazing Efficiency Matters Today
Aluminum has become one of the most widely used metals in modern manufacturing, especially in industries such as automotive, electric vehicles (EVs), aerospace, and heating, ventilation, and air conditioning (HVAC) systems. Its lightweight properties, excellent thermal conductivity, and corrosion resistance make aluminum ideal for components like radiators, condensers, and cooling plates. However, the challenge in aluminum manufacturing lies in achieving efficient, high-quality brazing that maintains material integrity while optimizing production speed.
Traditional batch-type furnaces often struggle with inconsistent heating, longer cycle times, higher energy consumption, and greater labor requirements. These limitations can hinder production efficiency, increase costs, and compromise product quality. As production volumes rise and tolerances tighten, the need for a solution that combines speed, uniformity, and reliability becomes critical.
The NB Continuous Cellular Board Brazing Furnace is designed to meet these demands. Its innovative design focuses on continuous processing, precise thermal management, and protective atmospheres, which together create a high-efficiency brazing environment. By minimizing energy loss, reducing cycle time, and providing consistent heat distribution, the NB Continuous Furnace represents a significant step forward in aluminum brazing technology. In the following sections, we will explore how this furnace achieves these results, improving efficiency and ensuring superior outcomes for aluminum components.

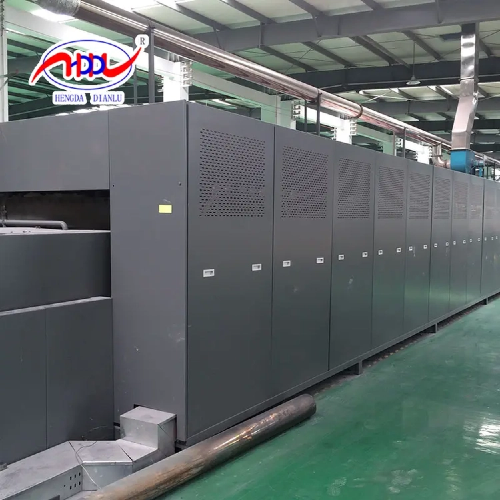

The Concept of NB Continuous Cellular Board Brazing Furnace
The NB Continuous Cellular Board Brazing Furnace represents a revolutionary approach in industrial aluminum brazing. Unlike batch furnaces that operate intermittently, the NB Continuous Furnace utilizes a conveyor-based system, allowing aluminum components to move steadily through multiple controlled heating and cooling zones. This continuous motion is essential for optimizing thermal efficiency, process consistency, and production throughput.
The term “cellular board” refers to the furnace’s internal design, where cellular boards act as conductive heat carriers, distributing heat evenly across the aluminum surfaces. This structure reduces temperature gradients, minimizes the risk of warping, and ensures that every component reaches its target brazing temperature uniformly. The design also allows for scalable production, accommodating a wide range of component sizes and thicknesses without sacrificing performance.
Another critical feature is the protective atmosphere inside the furnace. By using nitrogen or hydrogen gas, the furnace prevents oxidation, maintains surface integrity, and produces stronger, cleaner brazed joints. The integration of multi-zone temperature control and automation further enhances the process, allowing for fine-tuning of heating rates, peak temperatures, and cooling profiles for different aluminum alloys.
Key Features of the NB Continuous Cellular Board Brazing Furnace
Continuous conveyor system: Ensures uninterrupted operation and consistent material flow.
Cellular board structure: Provides uniform heat distribution and thermal stability.
Multi-zone temperature control: Allows precise heating tailored to each component type.
Protective atmosphere (N₂, H₂): Reduces oxidation, improves joint quality, and maintains surface finish.
Automated monitoring and control: Optimizes process consistency and minimizes human error.
By combining these elements, the NB Continuous Furnace ensures both high productivity and excellent brazing quality, establishing a reliable standard for aluminum manufacturing.
How the NB Continuous Cellular Board Brazing Furnace Boosts Aluminum Brazing Efficiency
Efficiency in aluminum brazing relies on several factors: cycle time, heating uniformity, material handling, and energy consumption. The NB Continuous Cellular Board Brazing Furnace addresses all these aspects simultaneously, ensuring that manufacturers achieve superior performance across production lines.
Continuous Operation for Maximum Throughput
The continuous operation is perhaps the most significant efficiency advantage of the NB Furnace. Unlike batch furnaces that require repeated loading, heating, and unloading cycles, the NB Continuous Furnace allows aluminum components to move seamlessly through heating and cooling zones, eliminating idle time between batches.
The benefits of continuous operation include:
Reduced downtime: Steady, uninterrupted operation maximizes production capacity.
Consistent material flow: Components experience uniform heating and cooling throughout the furnace length.
Optimized workflow: Continuous feeding and retrieval reduce manual handling and streamline production.
By maintaining a steady flow, the furnace enhances operational efficiency, reduces bottlenecks, and provides a reliable basis for high-volume aluminum production.
Uniform Heating Through Cellular Board Design
Temperature uniformity is critical to achieving strong, defect-free aluminum joints. The cellular board design ensures even heat distribution across all surfaces, mitigating the risks of hot spots, warping, or incomplete brazing.
Key advantages of uniform heating include:
Reduced deformation: Minimizes material stress caused by uneven thermal expansion.
Stronger brazed joints: Uniform temperature promotes complete alloy bonding.
Consistent quality: Each component meets specifications without variations caused by uneven heating.
Optimized thermal efficiency: Reduces energy loss by evenly distributing heat throughout the furnace chamber.
This uniformity is especially important for thin aluminum sheets and panels, which are sensitive to temperature variations and can easily deform during conventional brazing processes.
Advanced Temperature and Atmosphere Control
The NB Continuous Furnace is equipped with multi-zone temperature control, enabling operators to create precise thermal profiles tailored to specific aluminum components. Each zone can be independently regulated, allowing for controlled heating rates, accurate peak temperatures, and gradual cooling sequences.
The furnace also maintains a protective atmosphere using nitrogen or hydrogen, which prevents oxidation and maintains surface integrity. The advantages of this system include:
Cleaner joint surfaces: Eliminates the formation of oxide layers that compromise brazing strength.
Stronger joints: Stable atmospheric conditions promote complete alloy bonding.
Reduced post-processing: Cleaner surfaces reduce the need for additional finishing or cleaning steps.
By combining precise temperature control with protective atmospheres, the NB Continuous Furnace ensures consistent, high-quality brazing while simultaneously increasing process efficiency.
Reduced Energy Consumption and Cost Efficiency
The furnace design prioritizes energy efficiency by optimizing heat retention and minimizing losses. Features that contribute to energy savings include:
High-quality insulation to reduce heat leakage
Cellular board structure for efficient heat distribution
Continuous operation, which avoids repeated reheating cycles common in batch furnaces
Optimized conveyor speed to balance throughput and energy use
These elements reduce power consumption, shorten cycle times, and minimize labor costs, resulting in lower overall operational expenses. The combination of energy efficiency and production reliability makes the NB Continuous Furnace a cost-effective solution for aluminum brazing operations.
Automation and Smart Control: The Hidden Power Behind Efficiency
Automation is a key differentiator for modern industrial furnaces. The NB Continuous Cellular Board Brazing Furnace integrates intelligent control systems that enhance efficiency, improve consistency, and reduce human error.
PLC-Based Smart Control System
Real-time monitoring of temperature, conveyor speed, and gas flow
Automatic adjustments based on process feedback
Data logging for analysis, troubleshooting, and process optimization
Automation Advantages
Reduced human error: Eliminates inconsistencies caused by manual operation.
Enhanced process repeatability: Maintains the same conditions for every production cycle.
Predictive maintenance: Monitoring data allows operators to plan maintenance proactively, reducing unplanned downtime.
Optimization of resources: Ensures that energy, gas, and labor are used efficiently, maximizing operational output.
By incorporating these intelligent control systems, the furnace achieves high efficiency without compromising quality, making it suitable for high-volume, precision aluminum brazing applications.
Real-World Applications: Where Efficiency Creates Value
The NB Continuous Cellular Board Brazing Furnace is widely used across multiple industries, particularly where aluminum brazing efficiency is critical.
Automotive Industry
Used for radiators, condensers, and intercoolers
High-volume production benefits from consistent heat and continuous operation
Electric Vehicle (EV) Manufacturing
Cooling plates and heat exchangers require precise thermal management
Continuous, uniform brazing ensures durability and performance
Aerospace Industry
Lightweight aluminum structures require defect-free joints
Precision heating and controlled atmospheres preserve component integrity
HVAC Systems
Heat exchangers and aluminum fins
Continuous furnace design reduces energy consumption and increases throughput
In each application, the furnace contributes to higher efficiency, improved quality, and consistent production performance, making it a cornerstone of modern aluminum manufacturing operations.
Comparing Efficiency: NB Continuous vs. Traditional Brazing Furnaces
Efficiency Factors | NB Continuous Cellular Board Brazing Furnace | Traditional Batch Furnace |
Operation Mode | Continuous conveyor | Intermittent batches |
Heating Uniformity | Excellent (multi-zone) | Moderate (static) |
Cycle Time | Short | Long |
Energy Use | Low | High |
Labor Demand | Minimal | High |
Output Consistency | Stable | Variable |
The NB Continuous Furnace clearly outperforms traditional batch furnaces in every efficiency metric. By adopting continuous technology, manufacturers gain:
Faster production rates due to uninterrupted operation
Higher-quality joints through uniform heating
Lower energy and labor costs
Consistent results across large-scale production runs
Conclusion
Efficiency is the cornerstone of modern aluminum brazing, and the NB Continuous Cellular Board Brazing Furnace exemplifies this by combining continuous operation, uniform heating, precise temperature and atmosphere control, energy savings, and advanced automation. Manufacturers who adopt this technology can achieve higher throughput, shorter cycle times, and consistently high-quality, defect-free brazed joints, all while reducing operational costs.
For companies looking to enhance their aluminum brazing processes and gain a competitive edge in today’s demanding industrial market, the NB Continuous Furnace offers a strategic, long-term solution. To explore how this advanced furnace can optimize your production or to discuss customized solutions for your manufacturing line, consider reaching out to the experts at Hengda Furnace Industry Co., Ltd., who can provide professional guidance and support tailored to your needs.
FAQs
Q1: What makes the NB Continuous Cellular Board Brazing Furnace different from standard models?
A1: Its continuous conveyor design and cellular board heating system ensure consistent, high-speed aluminum brazing with minimal energy loss.
Q2: How does it improve product quality while increasing efficiency?
A2: By maintaining stable temperatures and protective atmospheres, it prevents oxidation and ensures cleaner, stronger aluminum joints.
Q3: Is the furnace suitable for all types of aluminum components?
A3: Yes, it is ideal for radiators, condensers, cooling plates, and any aluminum-based heat transfer parts.
Q4: Can the system be customized for specific production needs?
A4: Yes. The furnace can be adjusted in terms of length, number of heating zones, and automation settings.
Q5: How does it help reduce operational costs?
A5: Continuous production shortens cycle times, minimizes energy waste, and reduces the need for manual intervention.
Q6: How does automation enhance efficiency in the NB Continuous Furnace?
A6: Automated monitoring and control optimize temperature, conveyor speed, and gas flow, reducing human error and ensuring consistent, repeatable production.
